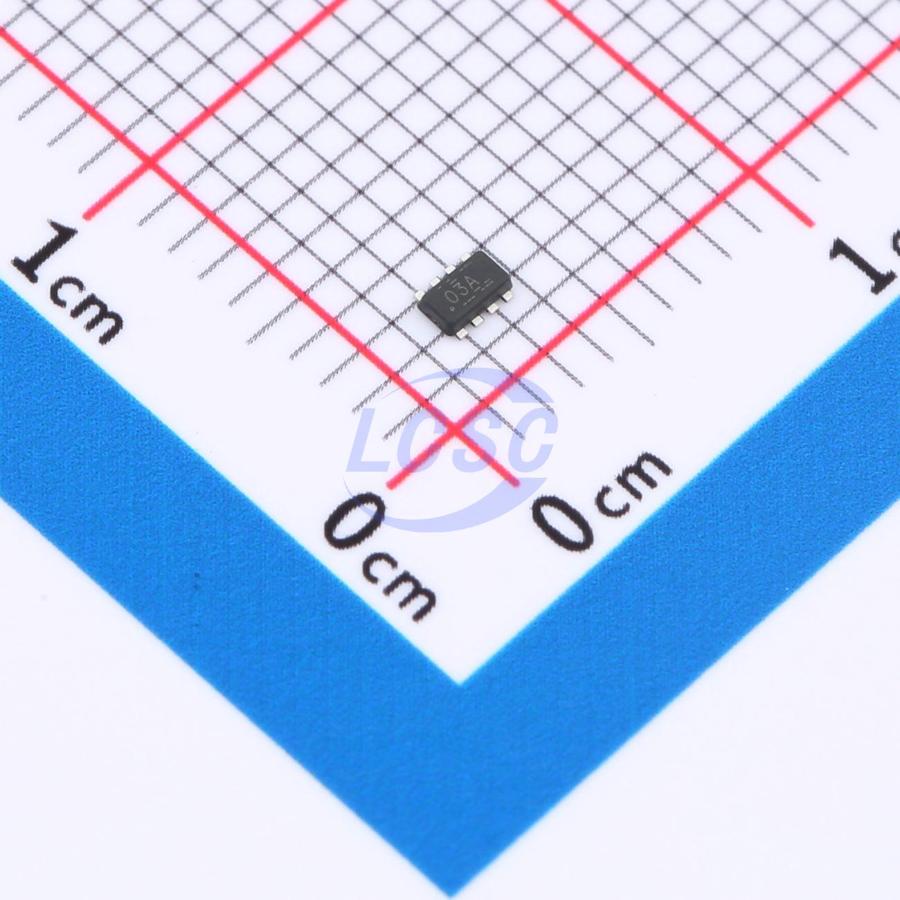

TPS628303ADRLR

The TPS62830x is an easy-to-use, synchronous, step-down, DC/DC converters family with low quiescent current. Based on the DCS-Control topology, TPS62830x provides a fast transient response with small output capacitance. The internal reference allows to regulate the output voltage down to 0.5V with a high feedback voltage accuracy of 1% over the junction temperature range of -40°C to 125°C. The family is available in two packages and each package devices are pin-to-pin compatible. The TPS62830x has a MODE pin to control the device mode of operation. Power save mode maintains high efficiency down to very light loads for extending the system battery run-time. Forced-PWM mode maintains a continuous conduction mode to make sure the least ripple in the output voltage and a quasi-fixed switching frequency. The device features a Power-Good signal and a well-controlled internal softstart circuit. TPS62830x is able to operate in 100% mode. For fault protection, TPS62830x incorporates a HICCUP short-circuit protection as well as a thermal shutdown. One device option has a latch-off protection for short circuit as well as overvoltage incidents. The family is available in two packages: an 8-pin 1.0mm × 2.0mm QFN package, offering the highest power density design, and an 8-pin 1.6mm × 2.1mm SOT583 package, offering an easy-to-assemble designs.

Applications

• Solid state drive
• Portable electronics
• Analog security and IP network cameras
• Industrial PC
• Factory automation and control
• ASIC, SoC, and MCU supply
• Generic point of load

Key features

• 2.25V to 5.5V input voltage range
• 0.5V to 4.5V adjustable output voltage
• 1% FB voltage accuracy (-40°C to 125°C, TJ)
• Optimized EMI performance, facilitates CISPR 11/32 compliance
• Integrated on-chip noise-filtering capacitors
• Measurements according to CISPR available
• Excellent transient response
• 7μA operating quiescent current
• 2.0MHz switching frequency
• 35mΩ and 18mΩ internal power MOSFETs
• DCS-Control topology
• MODE pin for conduction mode selection
• Supports 1.2V GPIO
• 100% duty cycle for lowest dropout
• Active output discharge
• Power-good output
• Thermal shutdown protection
• Hiccup or latch-off OCP/OVP
• SIMPLIS model available
• Create a custom design using the TPS62830x with WEBENCH Power Designer
