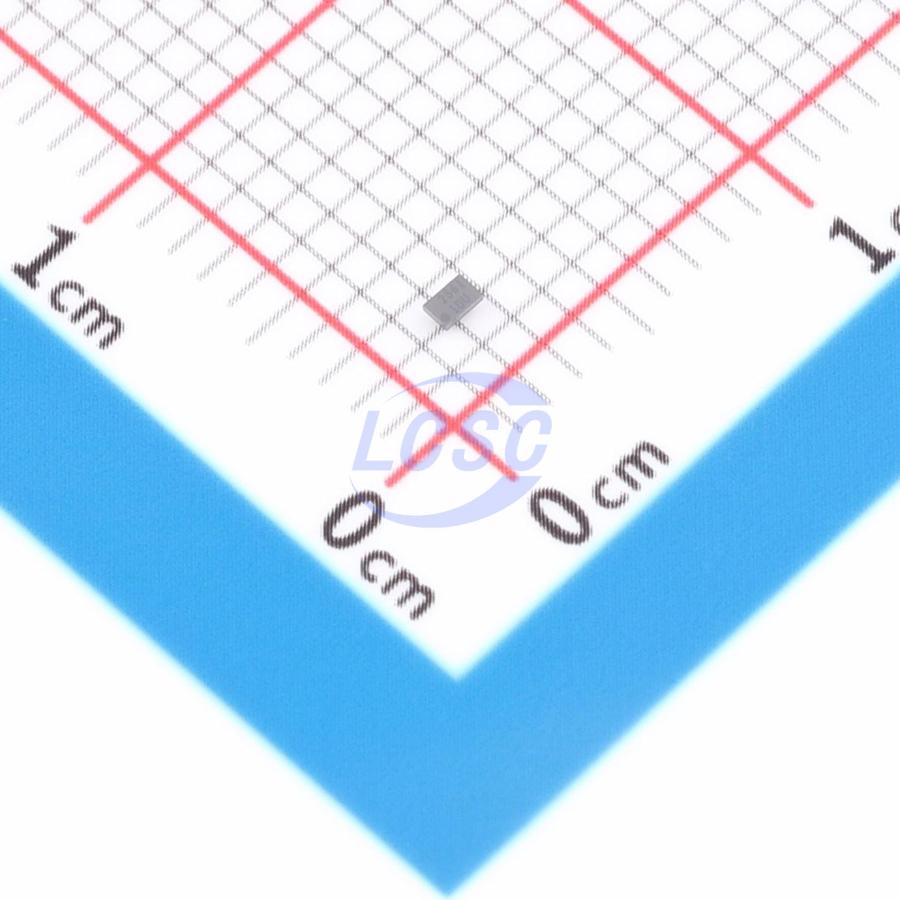

TPS6283810YFPR
Buck Switching Regulator IC Fixed 1V 1 Output 3A DSBGA-6(0.8x1.2)
DSBGA-6(0.8x1.2)ROHS3 CompliantActive
3A step-down converter in a small 6-pin WCSP package
- Manufacturer
- TI
- Manufacturer part #
- TPS6283810YFPR
- Store part #
- C1850336
- Package / case
- DSBGA-6(0.8x1.2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
183 in stock
#C1850336
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹204.95 | ₹204.95 |
| 10+ | ₹172.12 | ₹1,721.20 |
| 30+ | ₹151.39 | ₹4,541.70 |
| 100+ | ₹130.45 | ₹13,045.00 |
| 500+ | ₹120.94 | ₹60,470.00 |
| 1,000+ | ₹116.83 | ₹1,16,830.00 |
1 × ₹204.95
₹204.95
excl. GST
₹241.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS6283810YFPR
₹204.95 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 3.5MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Output discharge;Operating status indication;Hiccup current limiting;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 2.4V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3A
- Output Voltage
- 1V
- Quiescent Current
- 4uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
This device is a high-frequency synchronous buck converter optimized for small solution size and high efficiency. The input voltage range of 2.4V to 5.5V supports common battery technologies. The converter operates in PWM mode at moderate-to-high loads and automatically enters power-save mode at light loads, maintaining high efficiency across the full load current range. The switching frequency of 3.5MHz enables the use of small external components. The DCS-control architecture delivers excellent load transient performance and output voltage regulation accuracy. Additional features include overcurrent protection, thermal shutdown, active output discharge, and power-good indication. The device is available in a 6-pin WCSP package.
Applications
- Consumer wireless modules
- Wearable devices
- Smartphones
- Optical modules
Key features
- DCS-Control™ topology, 1V fixed output voltage with 1% accuracy
- 26mΩ and 26mΩ internal power MOSFETs
- 2.4V to 5.5V input voltage range
- 4μA operating quiescent current
- 3.5MHz switching frequency with power-save mode for high efficiency at light load
- Active output discharge
- Power-good output
- Thermal shutdown protection
- Hiccup short-circuit protection
- 0.8mm×1.2mm×0.5mm 6-pin WCSP package
- Use TPS6283810 with WEBENCH® Power Designer to create customized designs
