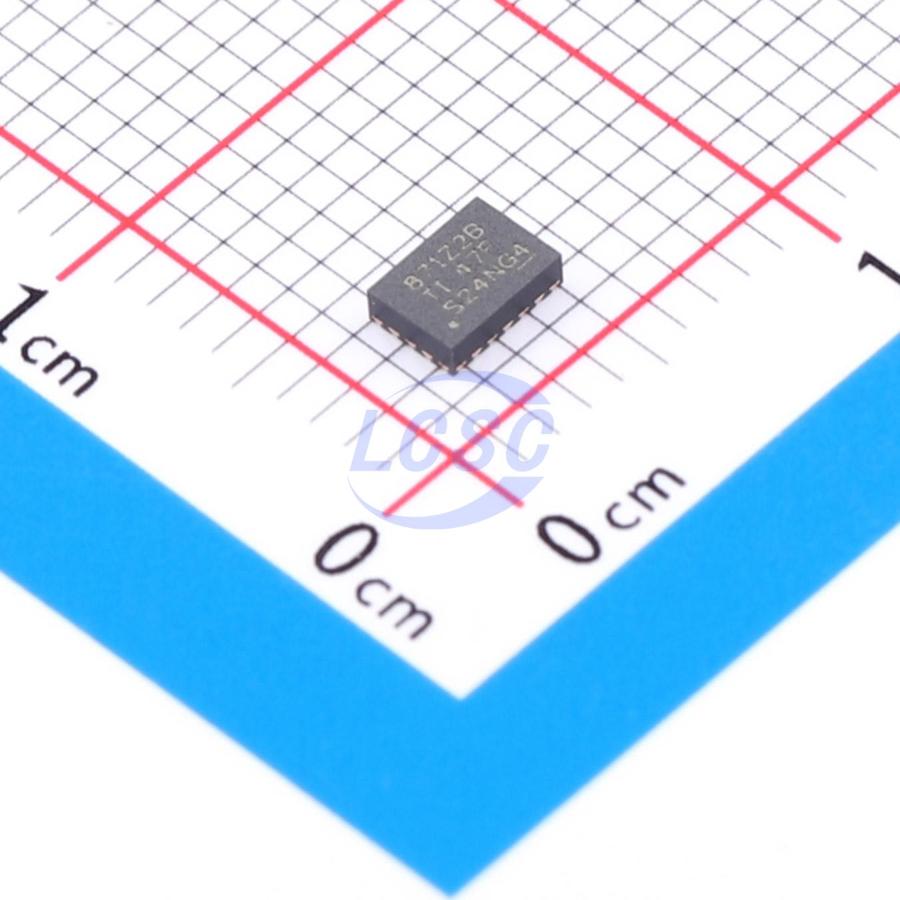

TPS62871Z2WRXSR

The TPS6287x is a family of pin-compatible 6A, 9A, 12A, and 15A synchronous step-down DC/DC converters with differential remote sensing. For each current rating, both a full-featured device variant with I2C interface and a limited-featured variant without I2C interface are available. All devices offer high efficiency and ease of use. Low-resistance power switches enable continuous output current up to 15A at high ambient temperatures. Devices can operate in stacked mode to provide higher output current or distribute power dissipation across multiple devices. The TPS6287x family uses a fixed-frequency DCS-Control topology to support fast transient response. Devices can operate in power-save mode for maximum efficiency or forced PWM mode for transient performance and minimum output voltage ripple. Remote sensing enables voltage regulation at the point of load, allowing the device to achieve better than ±1% DC voltage accuracy under all operating conditions. The switching frequency is resistor-selectable via the FSEL pin at 1.5MHz, 2.25MHz, 2.5MHz, or 3.0MHz, and can also be synchronized to an external clock within the same frequency range. The I2C-compatible interface provides various control, monitoring, and warning functions, such as voltage monitoring and temperature-related warnings. The output voltage can be rapidly adjusted via the I2C-compatible interface to match load power consumption to application performance requirements. The default startup voltage is resistor-selectable via the VSEL pin.

Applications

• Optical networking
• Storage
• FPGA, ASIC, and digital core power supply
• DDR memory power supply

Key features

• Available in integrated inductor power module versions: TPSM8287A06, TPSM8287A10, TPSM8287A12, TPSM8287A15
• Functional safety documentation available to support functional safety system design
• Input voltage range: 2.7V to 6V
• 6A, 9A, 12A, 15A pin-compatible device family
• Four output voltage ranges: 0.4V to 0.71875V (1.25mV steps); 0.4V to 1.0375V (2.5mV steps); 0.4V to 1.675V (5mV steps); 0.8V to 3.35V (10mV steps)
• Output voltage accuracy ±1%
• Differential remote sense
• Integrated 7mΩ and 4.5mΩ internal power MOSFETs
• Adjustable external compensation
• Supports Power Save Mode or forced PWM operation
• Optional synchronization to external clock or spread spectrum operation
• I2C-compatible interface up to 1MHz
• Stackable for higher output current capability
• Thermal warning and thermal shutdown
• Active output discharge
• Power Good output with window comparator
• 2.55mm × 3.55mm × 1mm VQFN package with wettable flanks
• Junction temperature operating range: -40°C to 125°C
