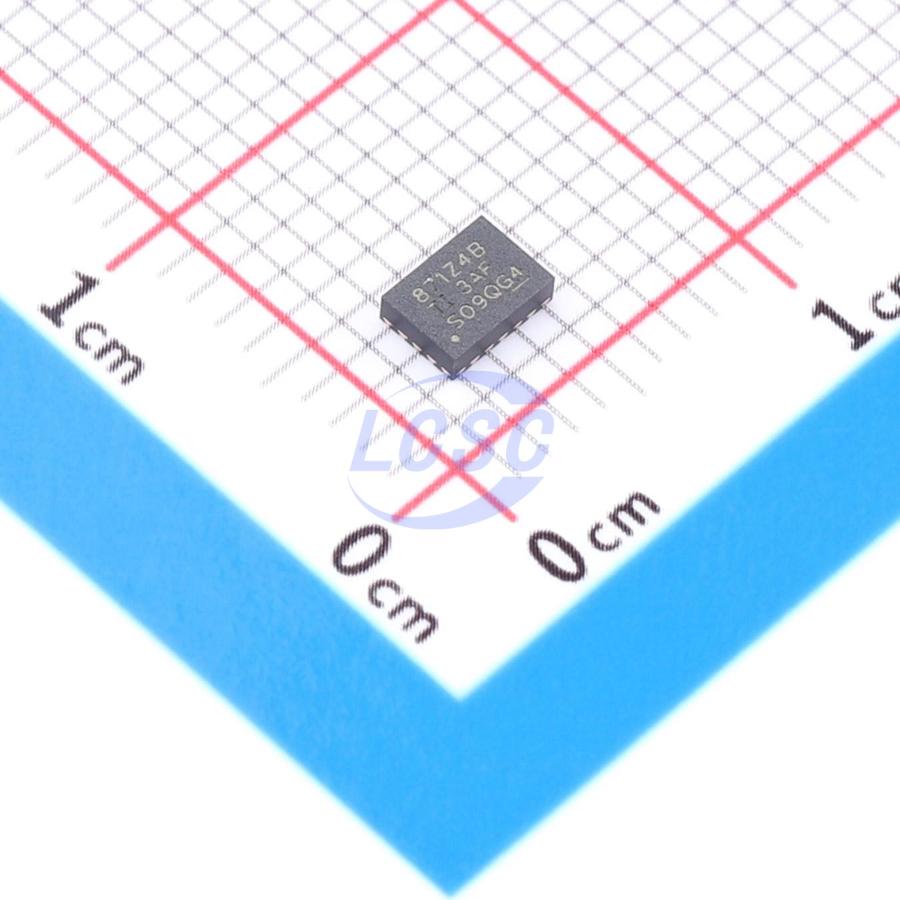

TPS62871Z4WRXSR

TPS6287x is a family of pin-compatible 6A, 9A, 12A, and 15A synchronous DC/DC buck converters with differential remote sensing. For each current rating, there are fully featured device variants with an I2C interface and feature-limited variants without an I2C interface. All devices offer high efficiency and ease of use. Low-resistance power switches support continuous output currents up to 15A in high-temperature environments. These devices can operate in stacked mode to deliver higher output currents or distribute power dissipation across multiple devices. The TPS6287x family implements a fixed-frequency DCS control scheme that supports fast transient response. Devices can operate in power-save mode to maximize efficiency, or in forced PWM mode for excellent transient performance and ultra-low output voltage ripple. The remote sensing feature regulates voltage at the point of load, and the device achieves better than ±1% DC voltage accuracy under all operating conditions. Switching frequency is resistor-selectable via the FSEL pin and can be set to 1.5MHz, 2.25MHz, 2.5MHz, or 3.0MHz, with external clock synchronization supported over the same frequency range. The I2C-compatible interface provides a variety of control, monitoring, and alert functions, such as voltage monitoring and temperature-related warnings. Output voltage can be adjusted rapidly via the I2C-compatible interface to adapt load power consumption to application performance requirements. The default startup voltage is resistor-selectable via the VSEL pin.

Applications

• Fiber optic networks
• Storage
• FPGA, ASIC, and digital core power supply
• DDR memory power supply

Key features

• Power module with integrated inductor: TPSM8287A06, TPSM8287A10, TPSM8287A12, TPSM8287A15
• Functional Safety-compliant, with documentation for functional safety system design
• Input voltage range: 2.7V to 6V
• 6A, 9A, 12A, 15A pin-to-pin device family
• Four output voltage ranges: 0.4V to 0.71875V (1.25mV steps); 0.4V to 1.0375V (2.5mV steps); 0.4V to 1.675V (5mV steps); 0.8V to 3.35V (10mV steps)
• Output voltage accuracy: ±1%
• Differential remote sensing
• 7mΩ and 4.5mΩ internal power MOSFETs
• Adjustable external compensation
• Power save or forced PWM operation
• Optional synchronization to external clock or spread spectrum operation
• I2C-compatible interface up to 1MHz
• Stackable for increased output current capability
• Thermal warning and thermal shutdown
• Active output discharge
• Power Good output with window comparator
• 2.55mm × 3.55mm × 1mm VQFN package with wettable flanks
• Junction temperature range: -40℃ to 125℃
