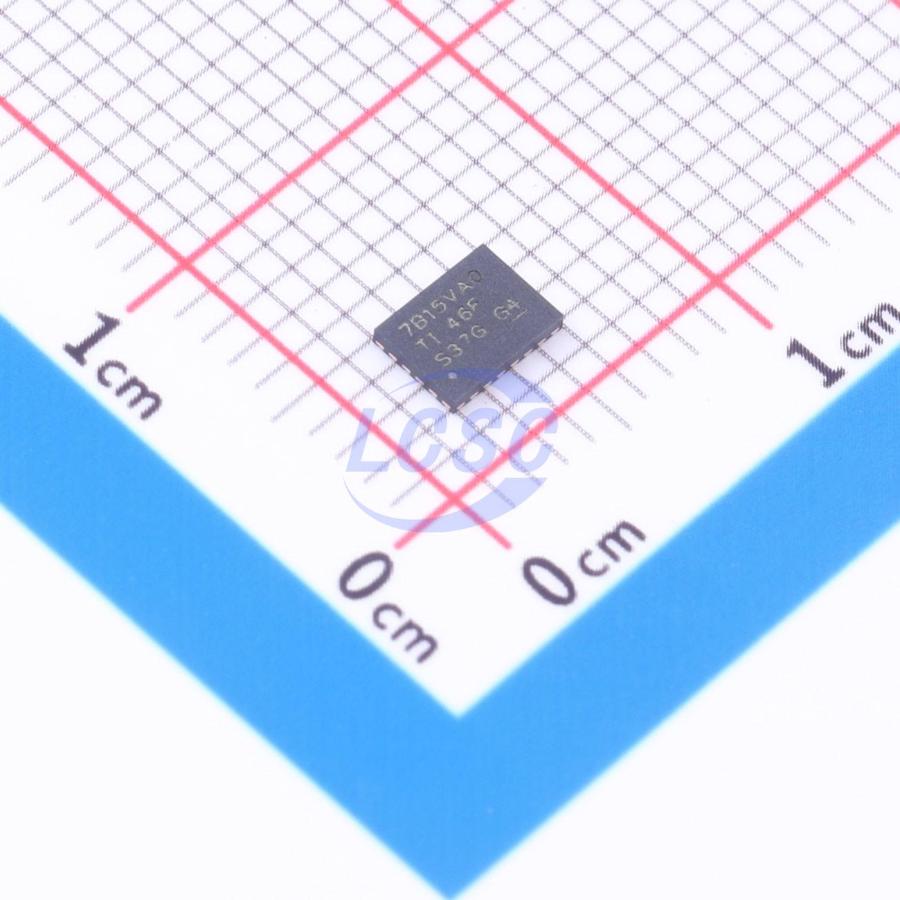

TPS6287B15VA0WRZVR

TPS6287B10, TPS6287B15, TPS6287B20, TPS6287B25, and TPS6287B30 are a family of synchronous step-down DC/DC converters supporting 10A, 15A, 20A, 25A, and 30A output currents, featuring an I2C interface and differential remote sensing. All devices offer high efficiency and ease of use. Low-resistance power switches allow output currents up to 30A at high ambient temperatures. Devices can operate in stacked mode to provide higher output current or to distribute power dissipation across multiple devices. The TPS6287Bxx family employs a fixed-frequency DCS-Control topology, enabling fast transient response. Devices can operate in power-save mode for maximum efficiency or in forced PWM mode for transient performance and minimum output voltage ripple. The optional remote sensing feature maximizes regulation accuracy at the point of load, with ±0.8% DC voltage accuracy across the entire output voltage range. The I2C-compatible interface provides extensive control, monitoring, and warning functions, such as voltage monitoring and temperature-related warnings. The output voltage can be rapidly adjusted to adapt load power consumption to performance requirements. The default startup voltage is resistor-selectable via the VSET1 and VSET2 pins.

Applications

• FPGA, ASIC, and digital core power supplies
• Optical networking
• Storage

Key features

• Input voltage range: 2.7V to 6V
• Three selectable output voltage ranges, covering 0.4V to 1.675V
• 0.4V to 0.71875V, 1.25mV steps
• 0.4V to 1.0375V, 2.5mV steps
• 0.4V to 1.675V, 5mV steps
• Output voltage accuracy: ±0.8%
• Integrated power MOSFETs with 2.6mΩ and 1.5mΩ resistance
• Adjustable soft-start
• External compensation
• Startup output voltage selectable via VSET1 and VSET2 pins
• 0.4V to 0.775V, 25mV steps
• 0.8V to 1.55V, 50mV steps
• Switching frequency selectable at 1.5MHz, 2.25MHz, 2.5MHz, or 3MHz via FSEL pin (TPS6287BxxJE2 only)
• Forced PWM mode or power-save mode operation
• Startup output voltage selectable via external resistor or I2C
• I2C-compatible interface, up to 3.4MHz operating frequency
• Optional stacked operation for enhanced output current capability
• Differential remote sensing
• Thermal warning and thermal shutdown
• Output discharge
• Optional spread-spectrum clock
• Power-good output with window comparator
