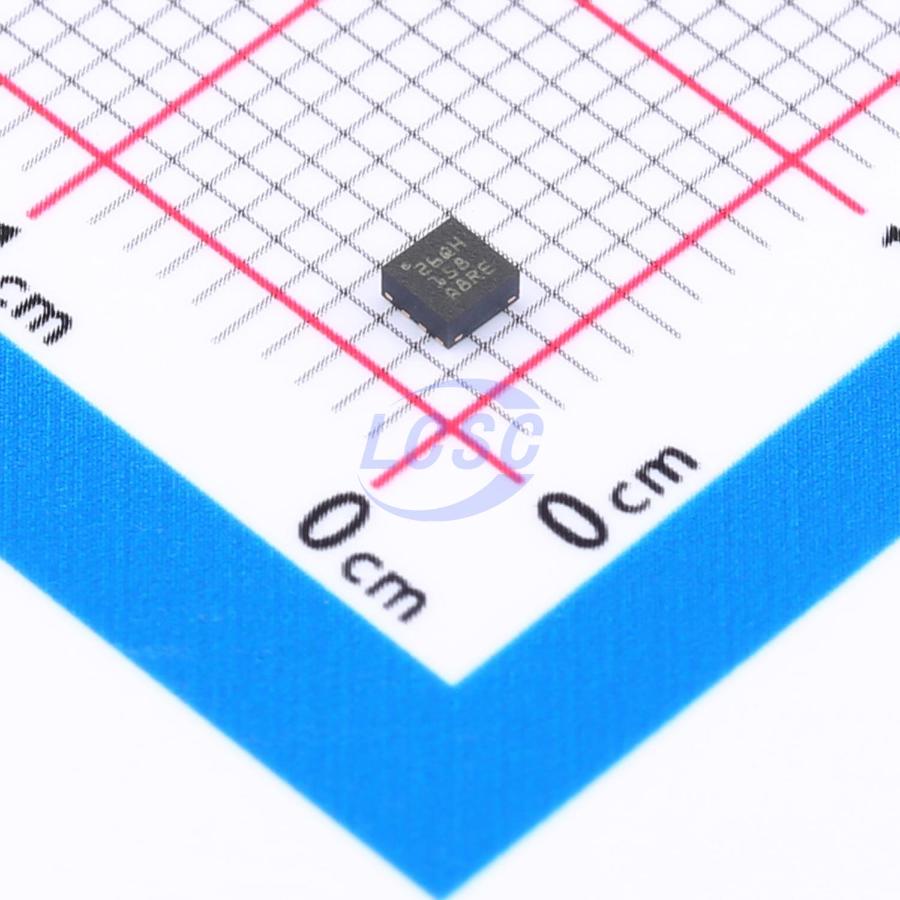

TPS62913RPUR

Step-down type Adjustable 800mV~5.5V 3A VQFN-10-HR(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-10-HR(2x2)ROHS3 CompliantActive

3-V to 17-V, 2-A/3-A Low Noise and Low Ripple Buck Converter with Integrated Ferrite Bead Filter Compensation

Manufacturer: TI
Manufacturer part #: TPS62913RPUR
Store part #: C5189914
Package / case: VQFN-10-HR(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,552 in stock

#C5189914

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹582.23	₹582.23
10+	₹500.27	₹5,002.70
30+	₹451.57	₹13,547.10
100+	₹412.00	₹41,200.00
500+	₹389.17	₹1,94,585.00
1,000+	₹378.95	₹3,78,950.00

Quantity (min 1)

1 × ₹582.23

₹582.23

excl. GST

₹687.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS62913RPUR

₹582.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 1MHz;2.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Frequency synchronization;EMI optimization (spread spectrum);Adjustable soft-start;Operating status indication;Output discharge
Output Type: Adjustable
Topology: Buck
Operating Voltage: 3V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~5.5V
Output Current: 3A
Quiescent Current: 5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The TPS6291x family is a set of high-efficiency, low-noise, and low-ripple current-mode synchronous buck converters. These devices are well-suited for noise-sensitive applications that typically use an LDO for post-regulation, such as high-speed ADCs, clocks and jitter cleaners, serializers, deserializers, and radar applications. These devices operate at a fixed switching frequency of 2.2 MHz or 1 MHz and can be synchronized to an external clock. To further reduce output voltage ripple, integrated loop compensation works with an optional second-stage ferrite bead L-C filter, enabling output voltage ripple below 10 μVRMS. Low-frequency noise levels comparable to a low-noise LDO can be achieved by filtering the internal voltage reference with a capacitor connected to the NR/SS pin. An optional spread-spectrum modulation scheme spreads the DC/DC switching frequency over a wider range, reducing mixing spurs.
