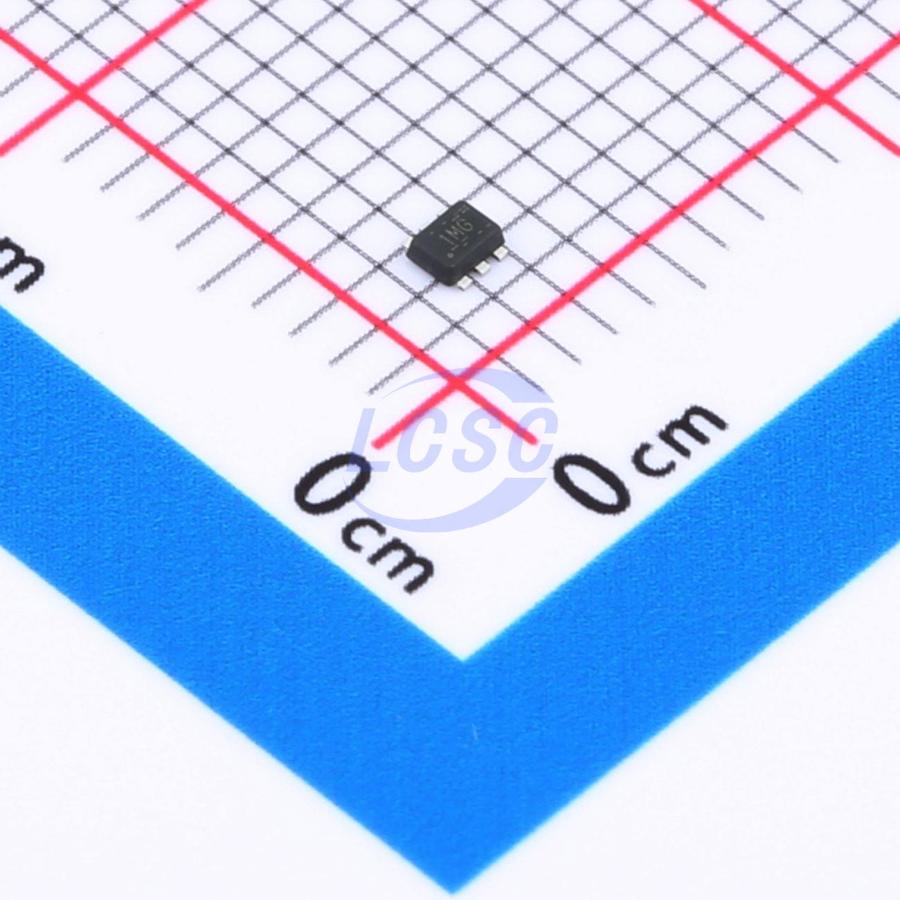

TPS62A06DRLR

The TPS62A06 family of devices are synchronous, step-down, buck, DC/DC converters optimized for high efficiency and compact solution size. The device integrates switches capable of delivering an output current up to 6 A. At medium to heavy loads, the device operates in pulse width modulation (PWM) mode with 2.2-MHz switching frequency. At light load, the device automatically enters power save mode (PSM) to maintain high efficiency over the entire load current range. The TPS62A06A variants of this device family operate in forced PWM across the whole load current range. The TPS62A06 provides an adjustable output voltage through an external resistor divider. An internal softstart circuit limits the inrush current during start-up. Other features like overcurrent protection, thermal shutdown protection, and power good are built-in. The device is available in a SOT563 package.

Applications

• Multi-function printer
• Set top box
• TV applications
• IP network camera
• Wireless router, solid state drive
• Battery-powered applications
• General purpose point-of-load supply

Key features

• 2.5-V to 5.5-V input voltage range
• 0.6-V to VIN adjustable output voltage range
• 15-mΩ / 10-mΩ low RDSON switches (6 A)
• 25-μA quiescent current
• 1% feedback accuracy (0°C to 125°C)
• 100% mode operation
• 2.2-MHz switching frequency
• Power save mode or FPWM option available
• Power-good output pin
• Short-circuit protection (HICCUP)
• Internal soft start-up
• Output discharge
• Thermal shutdown protection
• Available in a 1.6-mm × 1.6-mm SOT563 package
• Pin-to-pin compatible with the TLV62585
