TIDatasheet (PDF)

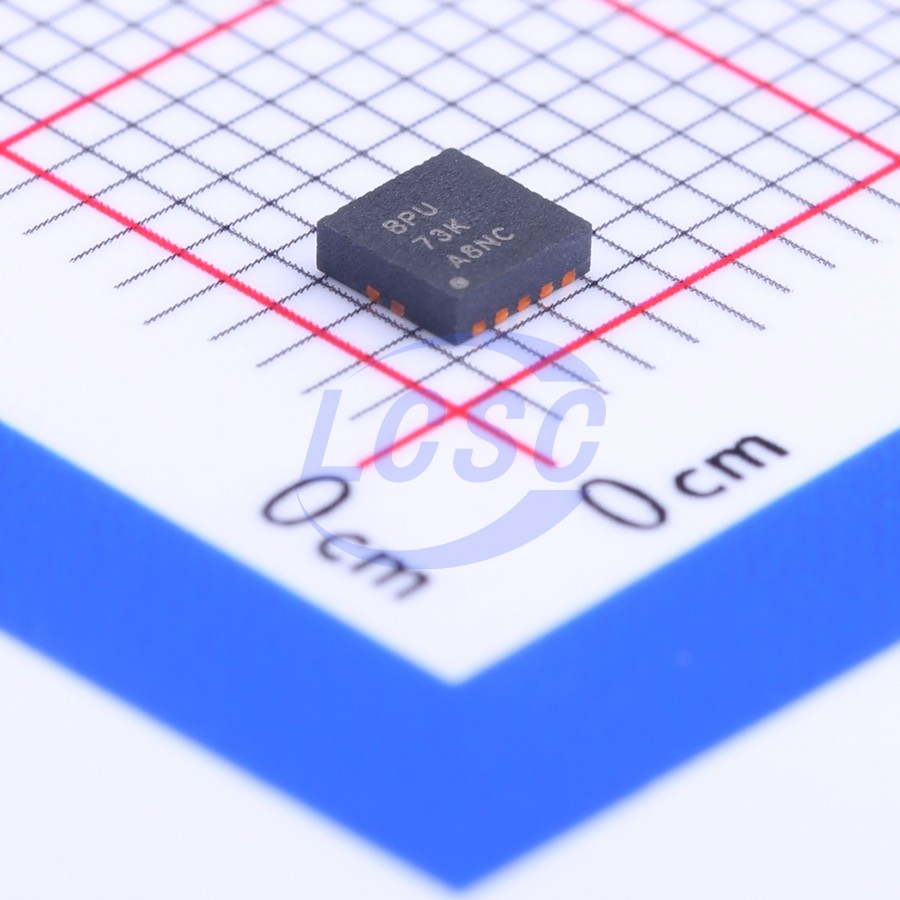

TPS63001DRCR
1.5MHz Buck-Boost Fixed 3.3V 1.2A VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
VSON-10-EP(3x3)ROHS3 CompliantActive
High-Efficient Single Inductor Buck-Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS63001DRCR
- Store part #
- C28060
- Package / case
- VSON-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,759 in stock
#C28060
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.11 | ₹214.11 |
| 10+ | ₹176.98 | ₹1,769.80 |
| 30+ | ₹156.56 | ₹4,696.80 |
| 100+ | ₹133.56 | ₹13,356.00 |
| 500+ | ₹123.13 | ₹61,565.00 |
| 1,000+ | ₹118.57 | ₹1,18,570.00 |
1 × ₹214.11
₹214.11
excl. GST
₹252.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS63001DRCR
₹214.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 1.5MHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Frequency synchronization;Load disconnect;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck-Boost
- Operating Voltage
- 1.8V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Output Current
- 1.2A
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
Input Voltage Range: 1.8 V to 5.5 V Fixed and Adjustable Output Voltage Options from 1.2 V to 5.5 V Up to 96% Efficiency 1200-mA Output Current at 3.3 V in Step-Down Mode (VIN = 3.6V to 5.5 V) Up to 800 mA Output Current at 3.3 V in Boost Mode (VIN > 2.4 V) Automatic Transition Between Step-Down and Boost Mode Device Quiescent Current less than 50 μA Power-Save Mode for Improved Efficiency at Low Output Power Forced Fixed Frequency Operation and Synchronization Possible Load Disconnect During Shutdown Overtemperature Protection Available in a Small 3 mm×3 mm 10-Pin VSON Package (QFN)
Applications
- All Two-Cell and Three-Cell Alkaline, NiCd or NiMH or Single-Cell Li Battery Powered Products
- Portable Audio Players
- Smart Phones
- Personal Medical Products
- White LEDs
Key features
- Input Voltage Range: 1.8 V to 5.5 V
- Fixed and Adjustable Output Voltage Options from 1.2 V to 5.5 V
- Up to 96% Efficiency
- 1200-mA Output Current at 3.3 V in Step-Down Mode (VIN = 3.6V to 5.5 V)
- Up to 800 mA Output Current at 3.3 V in Boost Mode (VIN > 2.4 V)
- Automatic Transition Between Step-Down and Boost Mode
- Device Quiescent Current less than 50 μA
- Power-Save Mode for Improved Efficiency at Low Output Power
- Forced Fixed Frequency Operation and Synchronization Possible
- Load Disconnect During Shutdown
- Overtemperature Protection
- Available in a Small 3 mm×3 mm 10-Pin VSON Package (QFN)
