TIDatasheet (PDF)

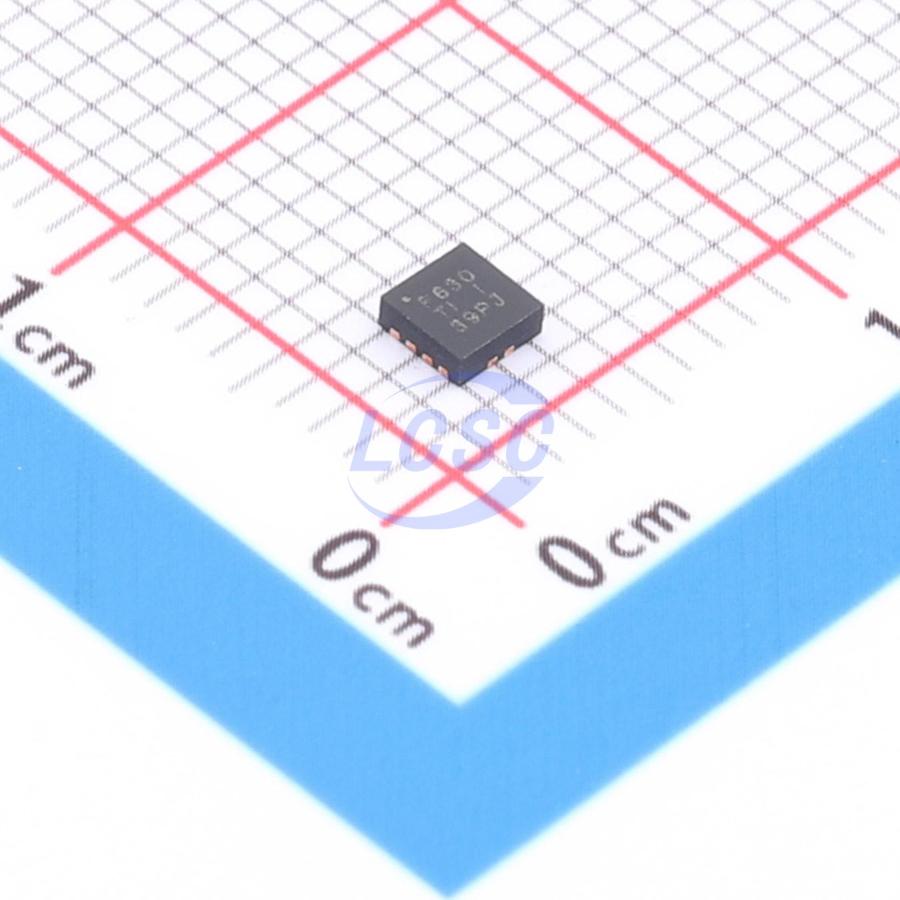

TPS63050RMWR
2.5MHz Buck-Boost Adjustable 2.5V~5.5V 500mA VFQFN-12(2.5x2.5) Voltage Regulators - DC DC Switching Regulators RoHS
VFQFN-12(2.5x2.5)ROHS3 CompliantActive
High Efficiency Buck-Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS63050RMWR
- Store part #
- C129338
- Package / case
- VFQFN-12(2.5x2.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,110 in stock
#C129338
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.18 | ₹156.18 |
| 10+ | ₹130.33 | ₹1,303.30 |
| 30+ | ₹116.21 | ₹3,486.30 |
| 100+ | ₹100.14 | ₹10,014.00 |
| 500+ | ₹93.19 | ₹46,595.00 |
| 1,000+ | ₹89.94 | ₹89,940.00 |
1 × ₹156.18
₹156.18
excl. GST
₹184.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS63050RMWR
₹156.18 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.5MHz
- Function
- Buck-Boost
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Adjustable soft-start;Light load efficient mode;Load disconnect;Operating status indication;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck-Boost
- Operating Voltage
- 2.5V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.5V
- Output Current
- 500mA
- Quiescent Current
- 43uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.155 g
Overview
The TPS6305x family of devices is a high efficiency, low quiescent-current buck-boost converter, suitable for applications where the input voltage is higher or lower than the output. Continuous output current can go as high as 500 mA in boost mode and as high as 1 A in buck mode. The maximum average current in the switches is limited to a typical value of 1 A. The TPS6305x family of devices regulate the output voltage over the complete input voltage range by automatically switching between buck or boost mode depending on the input voltage, ensuring seamless transition between modes. The buck-boost converter is based on a fixedfrequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain the highest efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over the complete load current range. The PFM/PWM pin allows the user to select between automatic-PFM/PWM mode operation and forcedPWM operation. During PWM mode a fixed-frequency of typically 2.5 MHz is used. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 12-pin DSBGA and in a 12-pin HotRod package.
Applications
- Cellular and Smart Phones
- Tablets PC
- PC and Smart Phone Accessories
- Battery Powered Applications
- Smart Grid/Smart Meter
Key features
- Real Buck or Boost with Seamless Transition Between Buck and Boost Mode
- 2.5 V to 5.5 V Input Voltage Range
- 0.5-A Continuous Output Current: VIN ≥ 2.5 V, VOUT = 3.3 V
- Adjustable and Fixed Output Voltage Version
- Efficiency >90% in Boost Mode and >95% in Buck Mode
- 2.5-MHz Typical Switching Frequency
- Adjustable Average Input Current Limit
- Adjustable Soft-Start Time
- Device Quiescent Current <60 μA
- Automatic Power Save Mode or Forced PWM Mode
- Load Disconnect During Shutdown
- Overtemperature Protection
- Small 1.6mm x 1.2mm, 12-pin WCSP and 2.5mm × 2.5mm 12-pin HotRod QFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS63050RMWT#C2071067TI · QFN-12(2.5x2.5) | TI | QFN-12(2.5x2.5) | 36 | ₹293.67 · 36 in stock | View |
