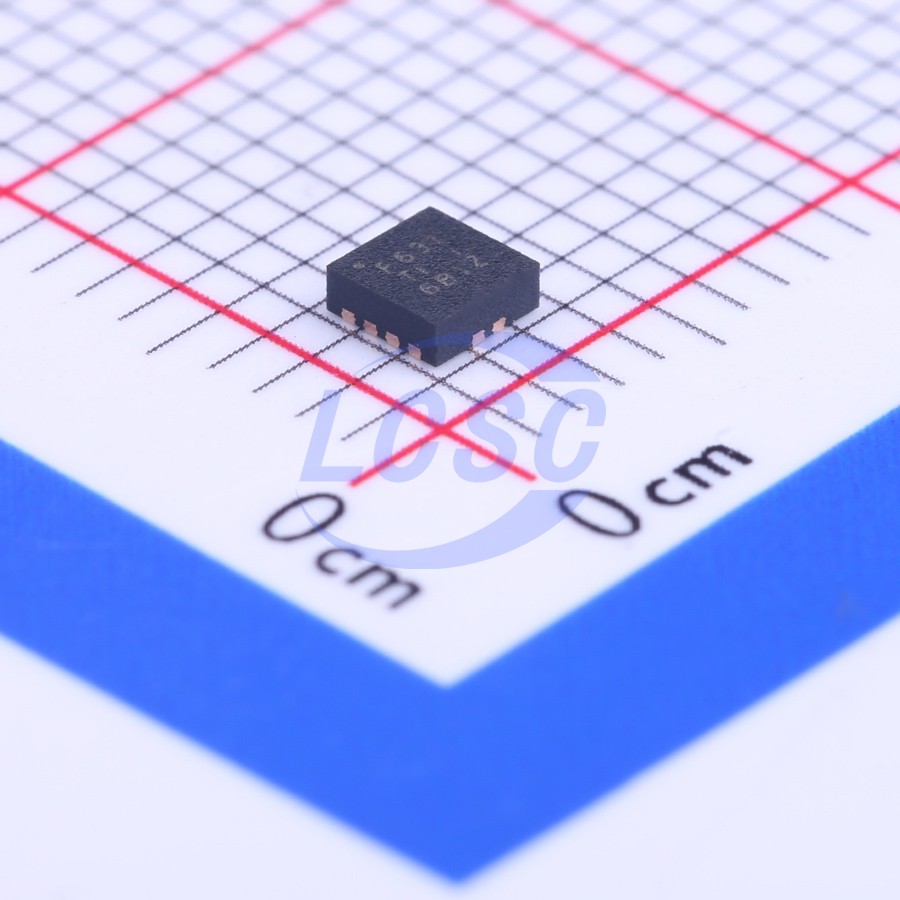

TPS63051RMWR

Buck-Boost Switching Regulator IC Fixed 3.3V 1 Output 500mA QFN-12(2.5x2.5)

QFN-12(2.5x2.5)ROHS CompliantActive

High-Efficiency Buck-Boost Converter

Manufacturer: TI
Manufacturer part #: TPS63051RMWR
Store part #: C139412
Package / case: QFN-12(2.5x2.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,218 in stock

#C139412

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹106.22	₹106.22
10+	₹87.44	₹874.40
30+	₹78.05	₹2,341.50
100+	₹68.83	₹6,883.00
500+	₹58.53	₹29,265.00
1,000+	₹55.64	₹55,640.00

Quantity (min 1)

1 × ₹106.22

₹106.22

excl. GST

₹125.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS63051RMWR

₹106.22 for 1 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Adjustable current limiting;Adjustable soft-start;Light load efficient mode;Load disconnect;Operating status indication
Output Type: Fixed
Topology: Buck-Boost
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 500mA
Quiescent Current: 43uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.024 g

Overview

The TPS6305x series devices are high-efficiency buck-boost converters with low quiescent current, suitable for applications where the input voltage is above or below the output voltage. In boost mode, the continuous output current can reach up to 500mA; in buck mode, the continuous output can reach up to 1A. The maximum average switch current limit is 1A (typical). The TPS6305x series devices regulate the output voltage across the entire input voltage range, automatically switching between buck and boost modes based on the input voltage, enabling seamless transitions between both modes. The buck-boost converter is based on a fixed-frequency PWM controller using synchronous rectification to achieve maximum efficiency. Under light load conditions, the converter enters power-save mode to maintain high efficiency across the entire load current range. Users can select between automatic PFM/PWM operating mode or forced PWM operating mode via the PFM/PWM pin. A fixed frequency of 2.5MHz is typically used in PWM mode. The output voltage can be programmed using an external resistor divider or internally fixed on-chip. The converter can be disabled to significantly reduce battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 12-pin Die-Size Ball Grid Array (DSBGA) package and a 12-pin HotRod package.
