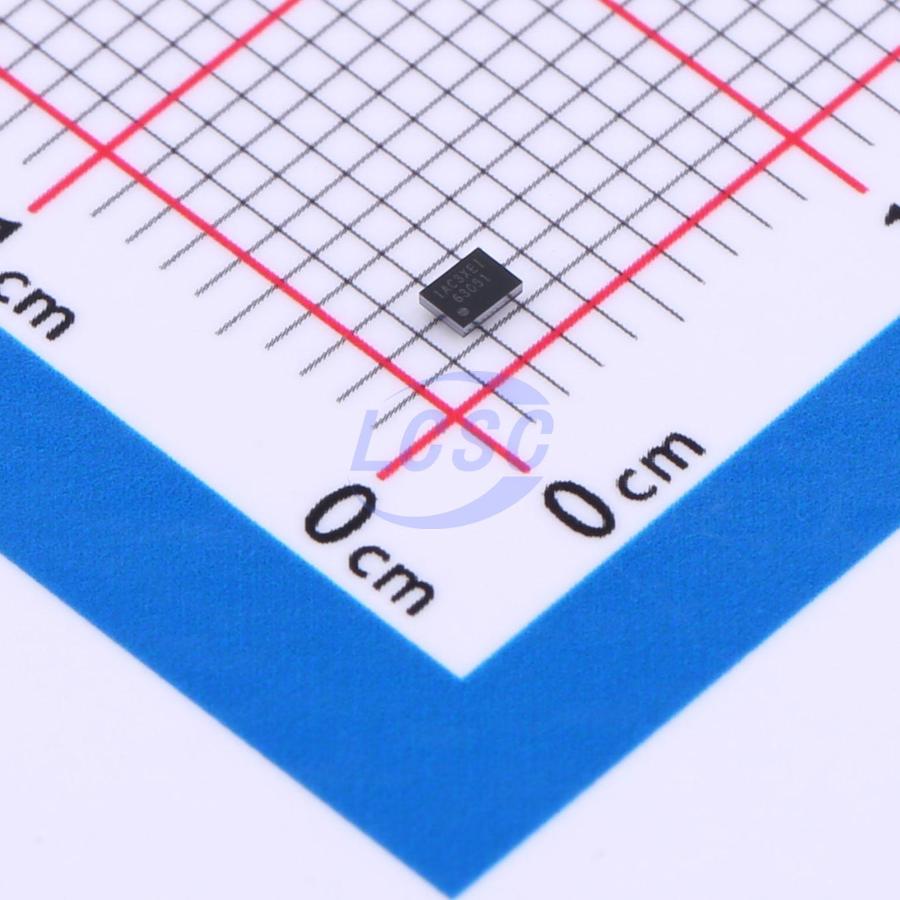

TPS63051YFFR

Buck-Boost Switching Regulator IC Fixed 3.3V 1 Output 500mA DSBGA-12

DSBGA-12ROHS3 CompliantActive

Single-inductor buck-boost converter with adjustable soft-start function

Manufacturer: TI
Manufacturer part #: TPS63051YFFR
Store part #: C2879621
Package / case: DSBGA-12
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,474 in stock

#C2879621

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹162.54	₹162.54
10+	₹138.64	₹1,386.40
30+	₹126.69	₹3,800.70
100+	₹114.74	₹11,474.00
500+	₹98.01	₹49,005.00
1,000+	₹94.32	₹94,320.00

Quantity (min 1)

1 × ₹162.54

₹162.54

excl. GST

₹191.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS63051YFFR

₹162.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.5MHz
Function: Buck-Boost
Number of Outputs: 1
Features: Adjustable current limiting;Adjustable soft-start;Light load efficient mode;Load disconnect;Operating status indication;Overcurrent Protection
Topology: Buck-Boost
Output Type: Fixed
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 500mA
Quiescent Current: 43uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.032 g

Overview

The TPS6305x series devices are high-efficiency buck-boost converters with low quiescent current, suitable for applications where the input voltage may be higher or lower than the output voltage. In boost mode, the continuous output current can reach up to 500mA; in buck mode, the continuous output can reach up to 1A. The maximum average switch current limit is 1A (typical). The TPS6305x series devices regulate the output voltage across the entire input voltage range, automatically switching between buck and boost modes based on the input voltage, enabling seamless transitions between the two modes. The buck-boost converter is based on a fixed-frequency PWM controller using synchronous rectification to achieve maximum efficiency. At low load currents, the converter enters power-save mode to maintain high efficiency across the entire load current range. Users can select automatic PFM/PWM operating mode or forced PWM operating mode via the PFM/PWM pin. A fixed frequency of 2.5MHz is typically used in PWM mode. The output voltage can be programmed using an external resistor divider or internally fixed on-chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 12-pin Die-Size Ball Grid Array (DSBGA) package and a 12-pin HotRod package.
