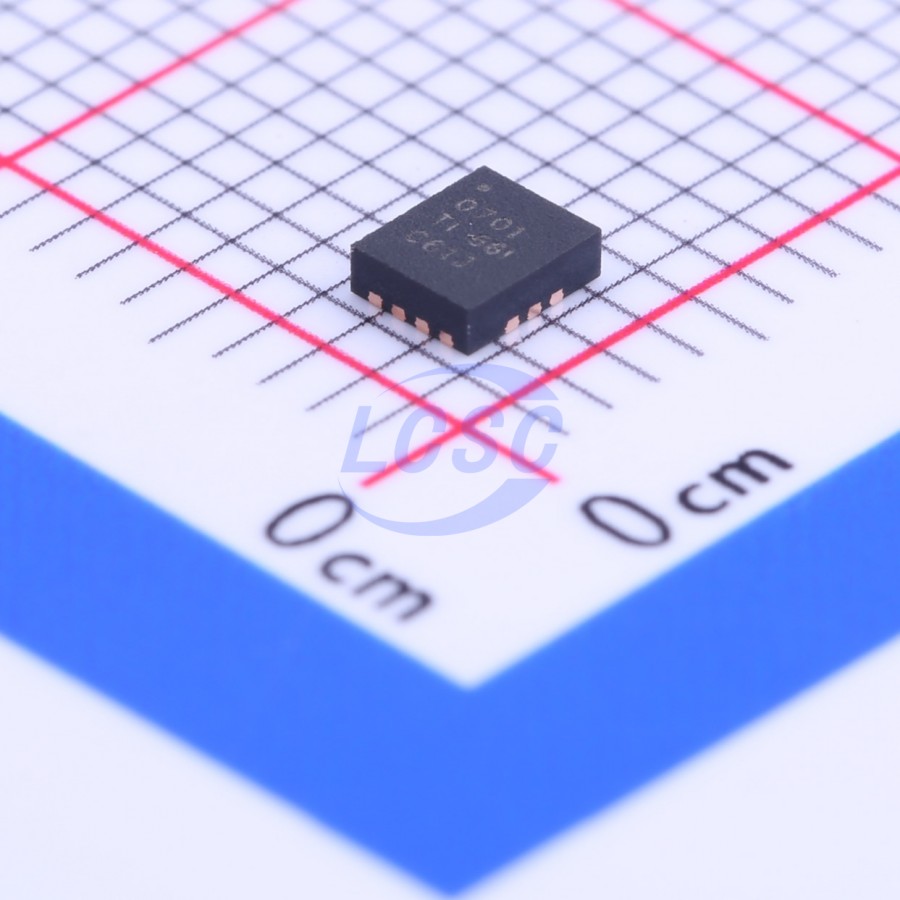

TPS630701RNMT

TPS6307x is a high-efficiency buck-boost converter with low quiescent current, designed for applications where the input voltage may be higher or lower than the output voltage. Output current can reach up to 2A in either boost or buck mode. This buck-boost converter is based on a fixed-frequency PWM controller that achieves maximum efficiency through synchronous rectification. At low load currents, the converter enters power-save mode to maintain high efficiency across a wide load current range. The converter can be disabled to significantly reduce battery drain. During shutdown, the load is disconnected from the battery. This device is available in a 2.5mm×3mm QFN package.

Applications

• Dual-cell lithium-ion applications
• Industrial metering equipment
• Digital still cameras (DSC) and portable camcorders
• Notebook computers
• Ultra-portable mobile PCs and mobile internet devices
• Personal medical products

Key features

• Input voltage range: 2.0V to 16V
• Output voltage range: 2.5V to 9V
• Up to 95% efficiency
• DC accuracy of +/-1% in PWM mode
• DC accuracy of +3%/-1% in PFM mode
• 2A output current in buck mode
• 2A output current in boost mode (VIN = 4V; Vout = 5V)
• Precision enable input for user-defined UVLO accurate sequencing
• Automatic transition between buck and boost mode
• Typical quiescent current: 50μA
• Fixed and adjustable output voltage options
• Power-save mode for improved efficiency at low output power
• 2.4MHz forced fixed operating frequency and synchronization options
• Power-good output
• Easy output voltage change via VSEL
• Load disconnect during shutdown
• Over-temperature protection
• Input/output overvoltage protection
• QFN package
