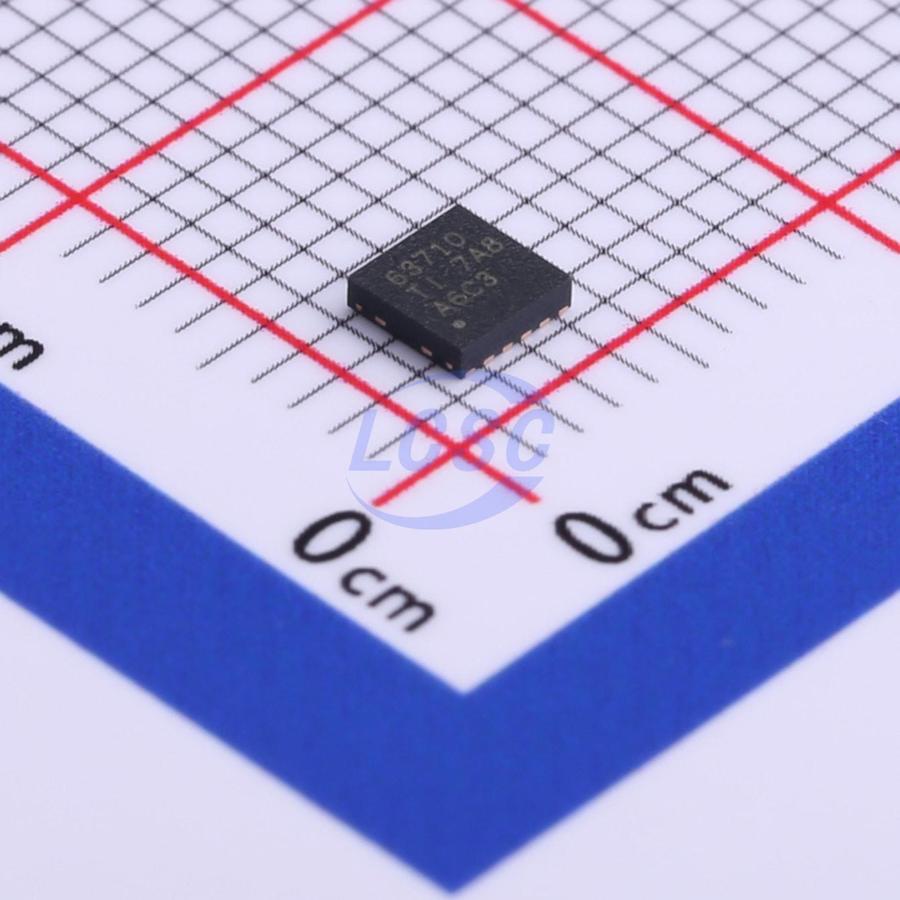

TPS63710DRRR

The TPS63710 is an inverting buck DC/DC converter capable of generating negative output voltages as low as -5.5V. It delivers output currents up to 1A, depending on the input-to-output voltage ratio. Its filtered reference system provides the low 1/f noise required in high-performance telecom systems. The TPS63710 employs a fixed-frequency PWM control topology, featuring internal current limiting and thermal shutdown. With an input voltage range of 3.1V to 14V, the TPS63710 is suitable for a wide range of applications requiring a negative output voltage derived from a higher positive input voltage (in absolute value). Synchronous rectification delivers high efficiency, particularly at small output voltages such as -1.8V — commonly used as the negative supply voltage for high-performance DACs and ADCs. The device operates at a fixed switching frequency of 1.5MHz, enabling the use of small external components and achieving a compact overall solution size. The TPS63710 is available in a 3mm×3mm WSON package, providing excellent thermal dissipation for applications operating at high ambient temperatures.

Applications

• General-purpose negative voltage supply
• ADC and DAC supply in telecom systems
• GaN transistor bias
• Optical module laser diode bias
• Noise-sensitive and space-constrained applications requiring negative supply voltage

Key features

• Input voltage range: 3.1V to 14V
• Output current: 1A
• Efficiency up to 91%
• Output voltage accuracy: ±1.5%
• Synchronous rectification
• Low 1/f noise reference system
• Noise: 22μVₚ₋ₚ (10Hz to 100kHz)
• Output voltage: -1V to -5.5V
• |∇OUT|<0.7×∇IN
• 1.5MHz fixed-frequency PWM mode
• Thermal shutdown
• Shutdown current: 5μA
• 3mm×3mm WSON package
