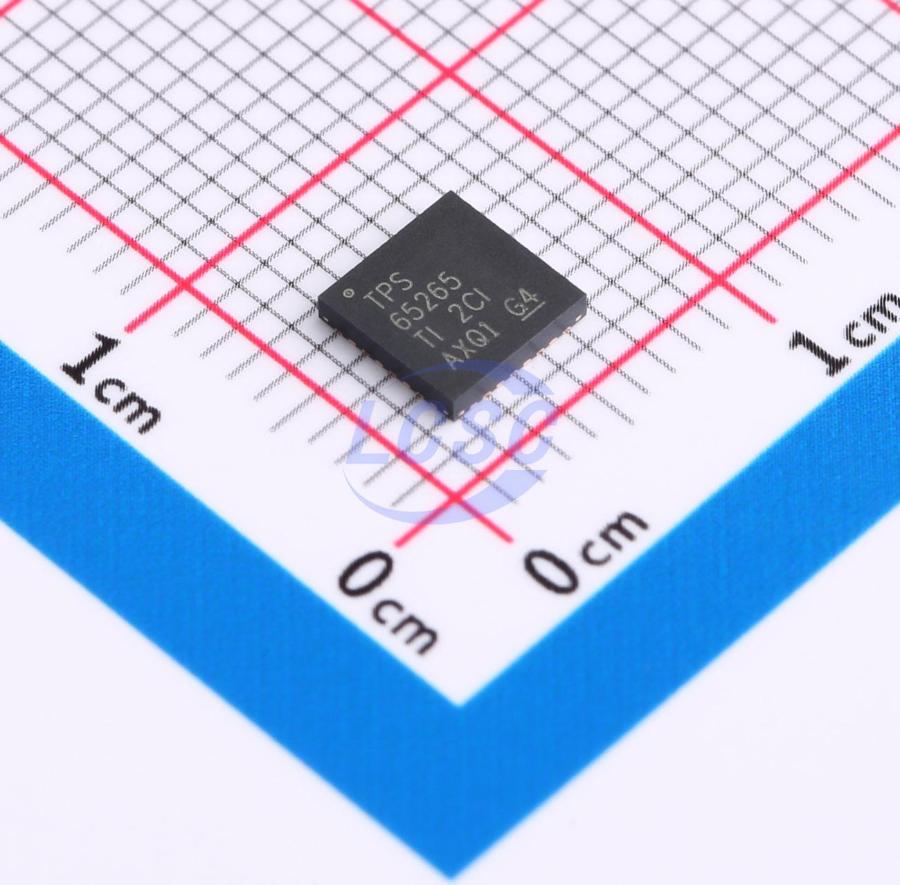

TPS65265RHBR

Buck Switching Regulator IC Adjustable 3 Output 5A 3A 2A VQFN-32-EP(5x5)

VQFN-32-EP(5x5)ROHS3 CompliantActive

4.5V to 17V input voltage, three-channel synchronous buck converter

Manufacturer: TI
Manufacturer part #: TPS65265RHBR
Store part #: C545179
Package / case: VQFN-32-EP(5x5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,347 in stock

#C545179

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
1+	₹313.42	₹313.42
10+	₹268.19	₹2,681.90
30+	₹239.91	₹7,197.30
100+	₹210.98	₹21,098.00
500+	₹197.93	₹98,965.00
1,000+	₹192.27	₹1,92,270.00

Quantity (min 1)

1 × ₹313.42

₹313.42

excl. GST

₹369.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS65265RHBR

₹313.42 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2.3MHz
Function: Step-down type
Number of Outputs: 3
Features: Frequency synchronization;Light load efficient mode;Operating status indication;Hiccup current limiting;Built-in LDO regulator;External compensation
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Current: 5A;3A;2A
Quiescent Current: 680uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.1 g

Overview

The TPS65265 integrates three synchronous buck converters supporting a wide 4.5V to 17V input voltage range, covering most power buses or batteries with intermediate bus cutoff voltages of 5V, 9V, 12V, or 15V. This converter features constant-frequency peak current mode, designed to simplify applications while allowing designers to optimize the system for their target application. The switching frequency is adjustable from 250kHz to 2.3MHz via an external resistor or external clock. 120° out-of-phase operation among Buck1, Buck2, and Buck3 minimizes input filter requirements. The TPS65265 enters pulse skip mode (PSM) by driving the MODE pin high or leaving it floating, and enters forced continuous conduction mode (FCM) by connecting the MODE pin to GND. PSM improves efficiency under light loads by reducing switching losses, while FCM reduces noise sensitivity and RF interference. The TPS65265 is available in a 32-pin 5mm×5mm thermally enhanced QFN (RHB) low-profile package.

Applications

Digital Television (DTV)
Set-Top Box / OTT
Home Gateway and Access Point Networks
Security Surveillance

Key features

Operating input voltage range: 4.5V to 17V
Feedback reference voltage: 0.6V ±1.33%
Continuous output current: 5A/3A/2A
Adjustable clock frequency range: 250kHz to 2.3MHz
External synchronization oscillator
120° phase difference between Buck1, Buck2, and Buck3
Dedicated enable pin per buck converter
Fixed soft-start (SS) time per buck converter (2.4ms)
Auto power-up/power-down sequencing with adjustable interval time between buck converters (6 combinations)
PSM and FCCM support
Output voltage power-good indicator with adjustable delay time
Thermal overload protection
32-pin 5mm x 5mm QFN (RHB) package
