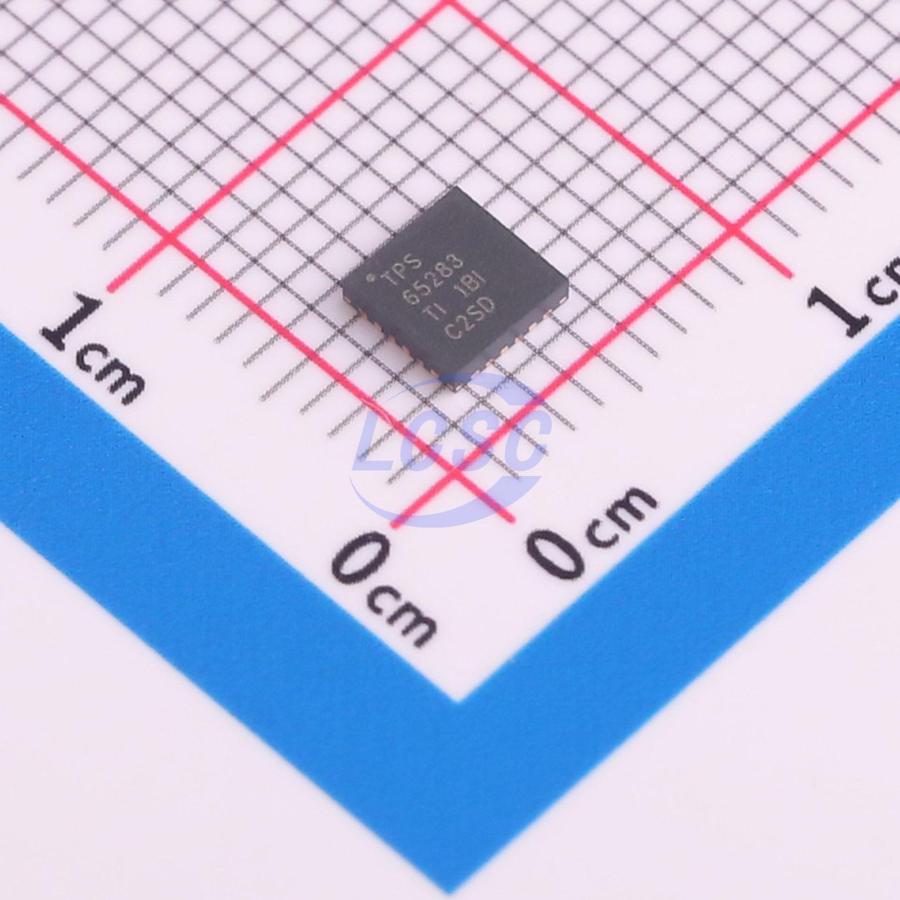

TPS65283RGER

TPS65283/-1 comes in a thermally enhanced 4mm×4mm VQFN package and is a fully featured 4.5V to 18V input voltage Vin, 3.5A/2.5A output current synchronous step-down DC-DC converter optimized for small designs through high efficiency and integrated high-side and low-side MOSFETs. The device also integrates an N-channel MOSFET power switch for power distribution systems. It provides a complete power distribution solution for applications requiring precise current limiting and fast protection response. The 60mΩ discrete power distribution switch limits output current to a programmable current limit threshold using an external resistor. A current limit accuracy of ±10% is achievable at a typical current of 1.25A. The nFAULT output is asserted low under overcurrent and reverse voltage conditions. Constant-frequency peak current mode control in the DC-DC converter simplifies compensation and optimizes transient response. Cycle-by-cycle overcurrent protection operating in discontinuous mode limits MOSFET power dissipation under buck output short-circuit or overload conditions. Thermal shutdown disables the device when the die temperature exceeds the overtemperature threshold.

Applications

• USB ports and hubs
• Set-top boxes
• Digital televisions
• DSL/cable modems
• Wireless routers
• Home gateway and access point networks
• Automotive infotainment systems

Key features

• 4.5V to 18V wide input voltage range
• Integrated dual buck converter, maximum continuous current 3.5A (Buck1)/2.5A (Buck2)
• Feedback reference voltage 0.6V±1%
• Adjustable switching frequency range: 200kHz to 2MHz
• Built-in soft-start time 2.4ms
• External clock synchronization
• Cycle-by-cycle current limiting
• Power-good indicator for each buck mode
• Operates in continuous conduction mode (TPS65283) or pulse skip mode (PSM) (TPS65283-1) under light load conditions
• Integrated load switch with 60mΩ on-resistance
• Operating input voltage range 2.4V to 6V
• Adjustable current limit up to 2.7A
• Current limit accuracy ±10% at 1.25A (typical)
• Auto-recovery overcurrent protection
• Reverse input-to-output voltage protection
• Overheat protection
• 24-pin VQFN (RGE) 4mm×4mm package
