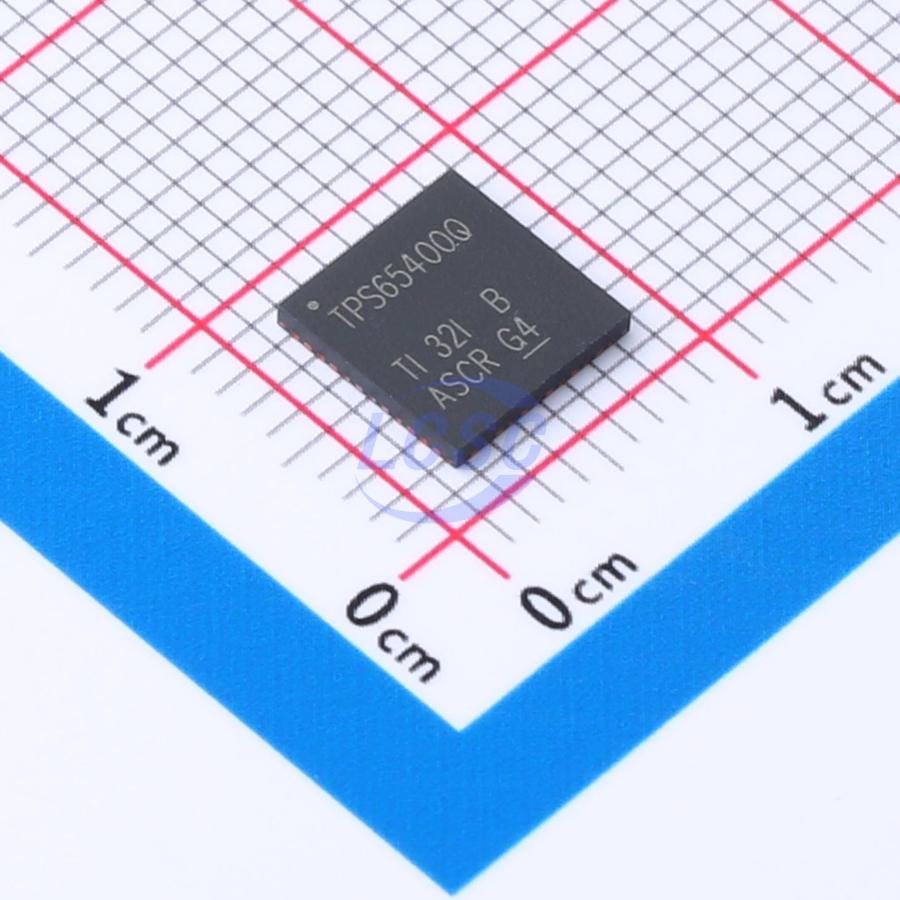

TPS65400QRGZRQ1

The TPS65400-Q1 is an integrated power management unit (PMU) optimized for applications requiring small form factor and high power conversion efficiency, enabling compact, space-constrained devices to operate in high-temperature environments without cooling. This device achieves high system-level energy efficiency through single-stage conversion from an intermediate power distribution bus using an optimized regulator combination. The TPS65400-Q1 implements a PMBus/I²C-compatible digital interface. This interface allows real-time adjustment of regulated voltages, power sequencing, phase interleaving, switching frequency, and operating status readback, enabling the host processor to optimize system performance. The TPS65400-Q1 contains four high-current step-down switching regulators (SW1, SW2, SW3, and SW4) with integrated FETs. These switching regulators are designed to power high-current digital circuits such as processors, FPGAs, ASICs, memory, and digital I/O. SW1 and SW2 support 4A, while SW3 and SW4 support 2A. The switching frequency of each regulator is independently adjustable up to 2.2MHz. Each switch features programmable current limiting, allowing optimized inductor ratings for specific applications that do not require maximum current capability. The TPS65400-Q1 can be powered from a single input voltage rail between 4.5V and 18V, making it ideal for applications powered from a 5V or 12V intermediate power distribution bus. Power sequencing requirements can be met using individual enable pins or by programming sequences into the on-board EEPROM via the I²C bus. Output voltage is set through an external resistor network, with VREF programmable from 0.6V to 1.87V in 10mV increments. All control and status information is accessible via the PMBus-compatible I²C bus. The TPS65400-Q1 offers extensive flexibility, providing comprehensive monitoring and control via the I²C bus while also supporting voltage regulation and external component-based programmability for systems that do not use I²C.

Applications

• Automotive-qualified
• Small cell BTS (e.g., picocell and microcell); macro BTS (using multiple PMUs)
• Power over Ethernet (PoE) communications infrastructure
• DSP and MCU power supply
• Industrial and factory automation
• Systems requiring compact size, high efficiency, high operating ambient temperature, and flexible power management

Key features

• Qualified for automotive applications with the following AEC-Q100 results:
• Device temperature grade 1: ambient operating temperature range of -40°C to 125°C
• Device human body model (HBM) ESD classification level H2
• Device charged device model (CDM) ESD classification level C4B
• Up to 95% efficiency per switching regulator
• Switching regulator specifications:
• Input voltage range: 4.5V to 18V
• Output voltage range: 0.6V to 90% of input voltage
• Output current for SW1 and SW2: 4A maximum
• Output current for SW3 and SW4: 2A maximum
• Pre-bias startup algorithm to minimize voltage droop during startup
• Internal UVLO, OCP, OVP, and OTP
• Thermally enhanced 7mm×7mm 48-pin 0.5mm pitch VQFN package
• Pin functions provided:
• Output voltage adjustable via external feedback resistors
• Individual switch sequencing control through precision enable pins
• PWM switching frequency adjustable from 275kHz to 2.2MHz via resistor
• Clock synchronization input and clock output
• Soft-start delay set by external capacitor
• Current sharing between SW1 & SW2 and SW3 & SW4 for high-current applications when required
• PMBus runtime control and status:
• Runtime voltage margining via VREF adjustment
• Enable and disable individual switches
• Fault and status monitoring
• User-configurable PMBus/I²C options stored in EEPROM
• Power-on and power-off sequencing:
• Power sequencing based on fixed time delay or PGOOD
• Initial voltage margining via VREF configuration
• PWM frequency adjustment per switch
• Reduced ripple and capacitor size
• Adjustable current limit per regulator for optimized inductor size and cost
• Soft-start time
