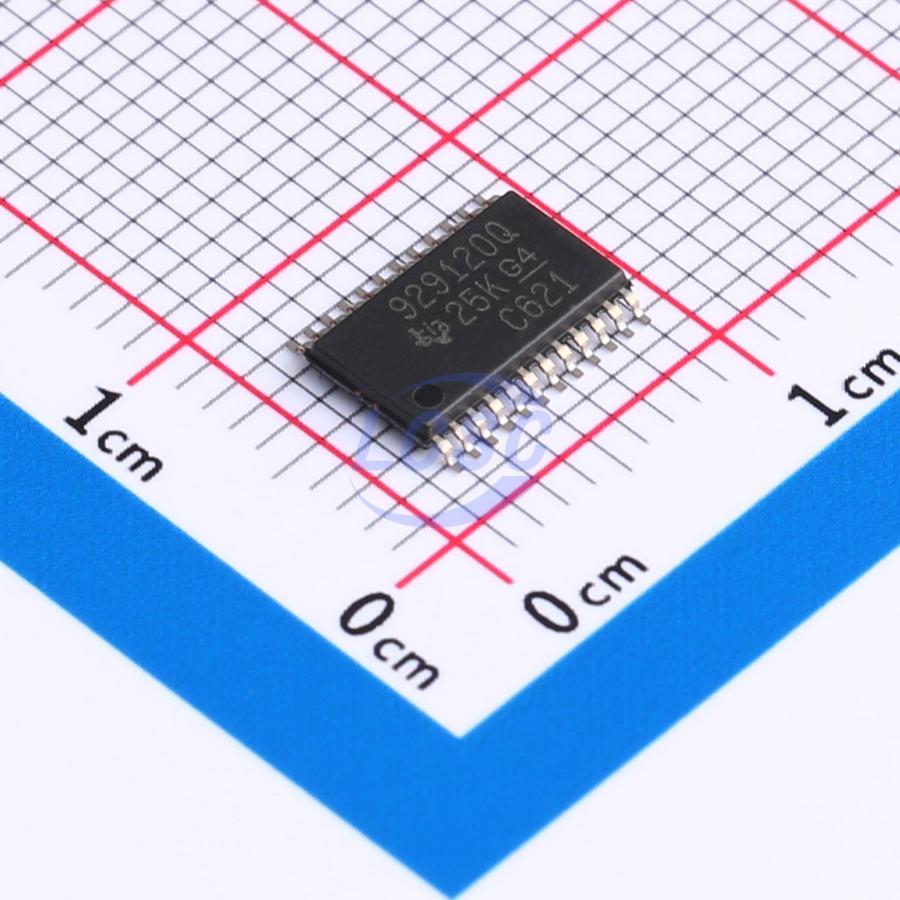

TPS929120QPWPRQ1

As the demand for animations in the automotive lighting field continues to grow, individual control of LEDs is essential. Therefore, LED drivers with digital interfaces are crucial for effectively driving pixel-controlled lighting applications. In external lighting, various lighting functions are often located on different PCBs interconnected by non-on-board wires. Traditional single-ended interfaces struggle to meet strict EMC requirements. By using the industry-standard CAN physical layer, the UART-based flexible wire interface of the TPS929120-Q1 can easily achieve long-distance non-on-board communication without affecting EMC performance. The TPS929120-Q1 is a 12-channel, 40V high-side LED driver that can control 8-bit output current and 12-bit PWM duty cycle. This device features LED open-circuit, ground short-circuit, and single-LED short-circuit diagnostic functions, meeting a variety of regulation requirements. When the connection to the MCU is lost, the configurable watchdog can automatically set the fail-safe state. With the programmable EEPROM, the TPS929120-Q1 can be flexibly configured for different application scenarios.

Applications

• Automotive exterior tail lights
• Automotive exterior headlights
• Automotive interior ambient lighting
• Automotive instrument cluster displays

Key features

• AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA
• Functional Safety capable
• Documentation available to aid functional safety system design
• 12-channel precision high-side current output
• Supply voltage: 4.5V to 40V
• Channel current up to 75mA set by resistor
• 2-bit global and 6-bit individual current setting
• High current accuracy: <±5% at 5mA to 75mA
• High current accuracy: <±10% at 1mA
• Low voltage drop: 500mV at 50mA
• 12-bit individual PWM dimming, programmable PWM frequency up to 20kHz
• Linear and exponential dimming methods
• Flexible wire control interface
• Clock frequency up to 1MHz
• Up to 16 devices on a single flexible wire bus
• Data transaction up to 8 bytes per frame
• 5V LDO output for CAN transceiver supply
• Diagnostics and protection:
• Programmable fail-safe state
• LED open detection
• LED short detection
• Single LED short-circuit diagnostics
• Programmable undervoltage detection
• Open-drain ERR fault indication
• Watchdog and CRC for flexible wire interface
• 8-bit ADC for pin voltage measurement
• Thermal protection
