TECH PUBLICDatasheet (PDF)

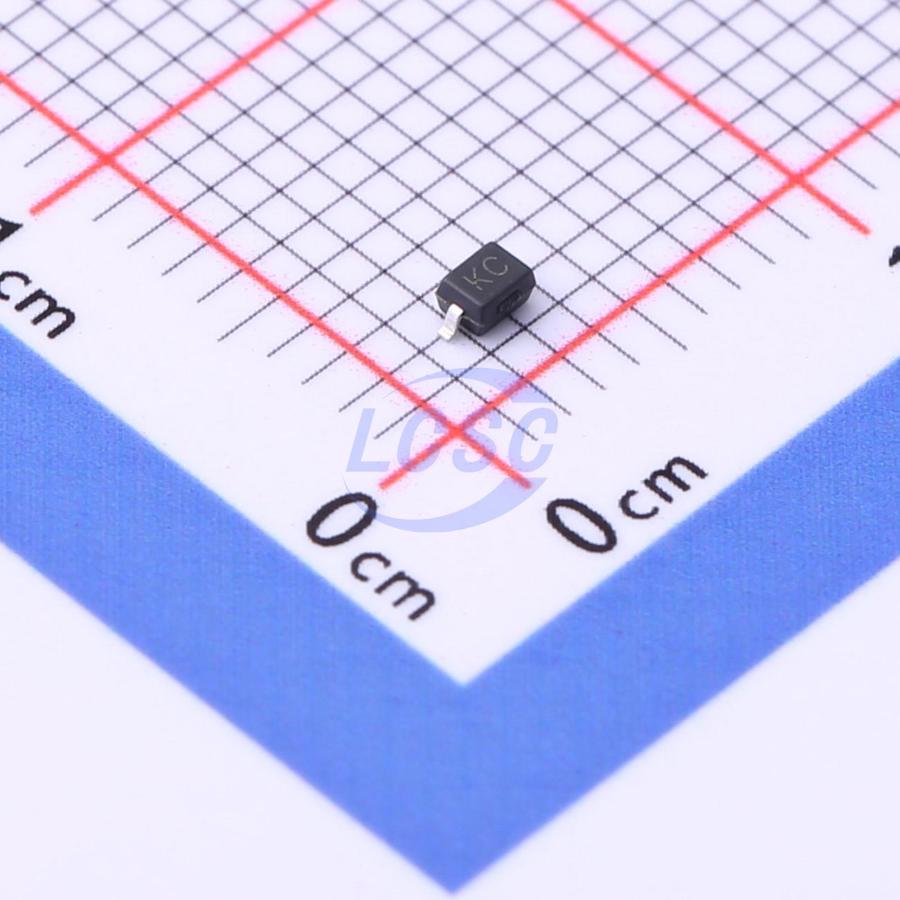

TPSD3C361L
75VC Clamp TVS DIODE SOD-323
SOD-323RoHSActive
TVS DIODE 36VWM 75VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSD3C361L
- Store part #
- C2937029
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,375 in stock
#C2937029
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.70 | ₹485.00 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 3,000+ | ₹6.03 | ₹18,090.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSD3C361L
₹60.60 for 5 + GST
Specifications
- Clamping Voltage
- 75V
- Peak Pulse Power Dissipation (Ppp)
- 250W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Leakage Current (Ir)
- 200nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- Peripherals
Key features
- 250W peak pulse power (8/20μs)
- Low operating : 36V
- Ultra low capacitance: 1.0 pF typical
- Ultra low leakage: nA leel
- Low clamping voltage
- Protects one power line or data line
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±20kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
