TECH PUBLICDatasheet (PDF)

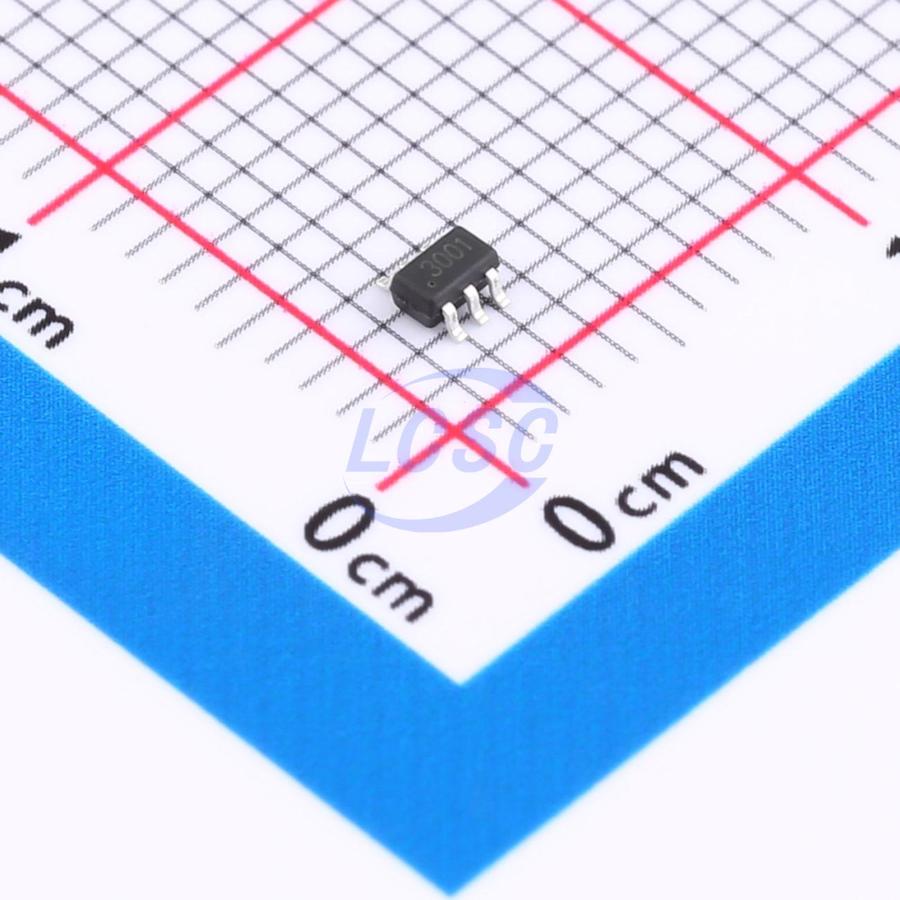

TPSGM3001XC6
6Ω 2V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers
SOT-363RoHSActive
SINGLE-POLE,DOUBLE-THROW ANALOG SWITCH
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSGM3001XC6
- Store part #
- C47117637
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C47117637
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.72 | ₹83.60 |
| 50+ | ₹13.32 | ₹666.00 |
| 150+ | ₹11.63 | ₹1,744.50 |
| 500+ | ₹10.35 | ₹5,175.00 |
| 3,000+ | ₹9.33 | ₹27,990.00 |
| 6,000+ | ₹8.82 | ₹52,920.00 |
5 × ₹16.72
₹83.60
excl. GST
₹98.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSGM3001XC6
₹83.60 for 5 + GST
Specifications
- Features
- Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Ron
- 6Ω
- Voltage - Supply
- 2V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.
Applications
- Cell phones and TWS headset
- Audio, Video, UART, USB2.0 Signal and Supply Routing
Key features
- Low On-resistance, R0n = 6.0Ω when A = 5V
- 1.8V Logic Compatible Control Pin
- A Overrides VCC to Achieve True Isolation Even When Supply Is Dead
- High Off-Isolation: -100dB @ 100KHz
- Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
- High Bandwidth (-3dB @300MHz)
- Suitable For USB2.0 High-Speed Routing
- Low Quiescent Current (< 2μA)
- With Very Wide Supply Range (2.0V ~ 5.5V)
