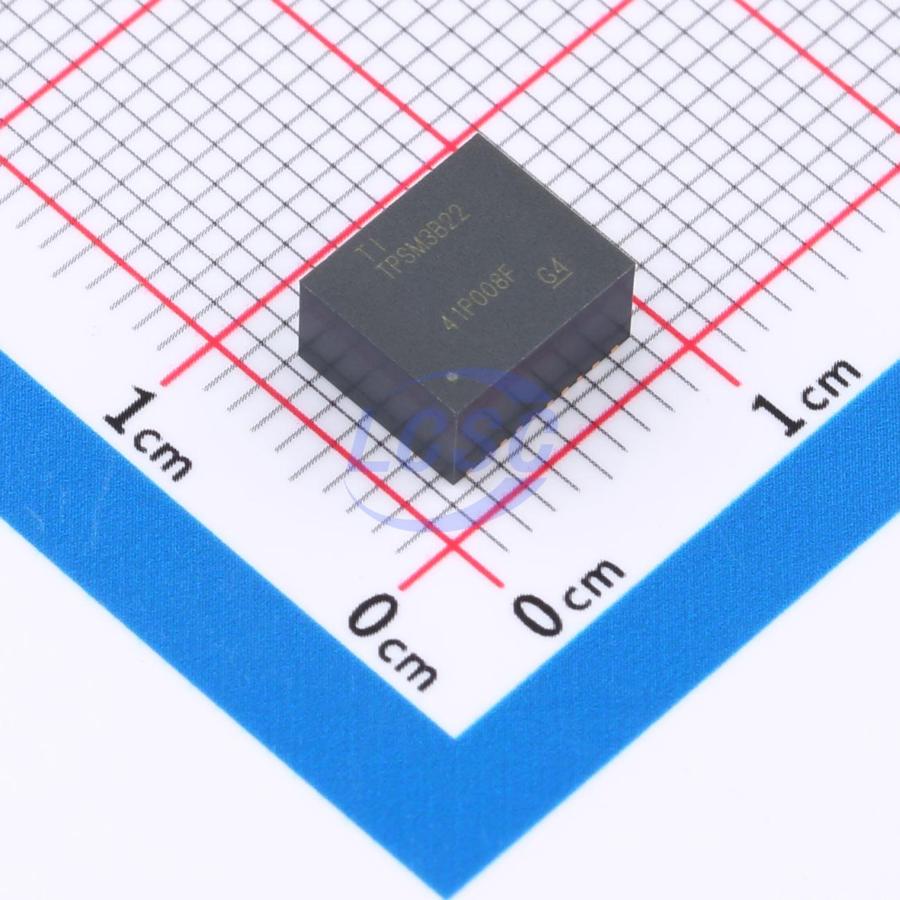

TPSM843B22RDGR TI

TPSM843B22RDGR

Buck DC DC Converter 0.5V~7V 20A 4V~18V Input

B3QFN-25(6.5x7.5)ROHS3 CompliantActive

4V to 18V input, 20A step-down power supply module

Manufacturer: TI
Manufacturer part #: TPSM843B22RDGR
Store part #: C19183947
Package / case: B3QFN-25(6.5x7.5)
Category: DC DC Converters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C19183947

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹4,342.24	₹4,342.24
30+	₹4,150.37	₹1,24,511.10

Quantity (min 1)

1 × ₹4,342.24

₹4,342.24

excl. GST

₹5,123.84 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

TPSM843B22RDGR

₹4,342.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Step-down type
Iout: 20A
Output Voltage Accuracy: ±5‰
Output Voltage: 500mV~7V
Height: 4mm
Frequency - Switching: 2.2MHz
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 1.6mA
Features: Programmable soft start;Programmable output voltage;Remote sampling compensation;External clock synchronization;Under Voltage Protection;Overvoltage protection;Over Current Protection;Over-temperature protection;Overload protection;Automatic fault recovery
Voltage - Supply: 4V~18V
Length: 6.5mm
Width: 7.5mm

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.9 g
