VISHAYDatasheet (PDF)

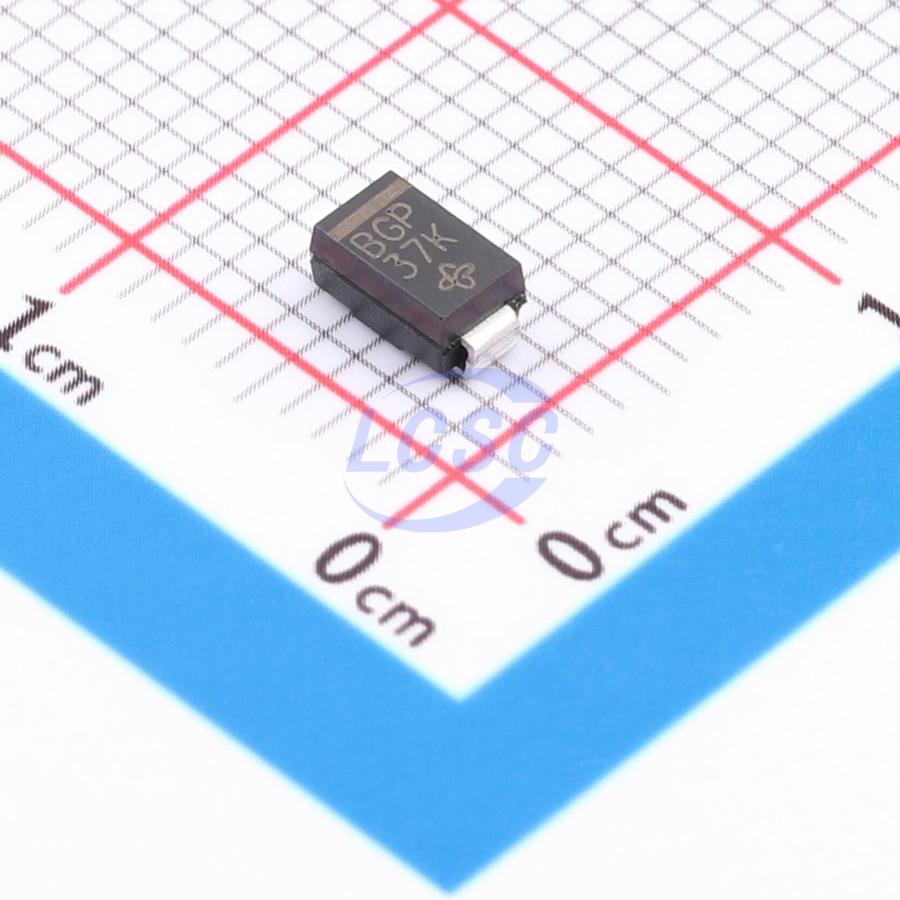

TPSMA20AHE3_B/H
27.7VC Clamp 14.4A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- TPSMA20AHE3_B/H
- Store part #
- C1974069
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,440 in stock
#C1974069
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.85 | ₹189.25 |
| 50+ | ₹29.93 | ₹1,496.50 |
| 150+ | ₹26.54 | ₹3,981.00 |
| 500+ | ₹22.29 | ₹11,145.00 |
5 × ₹37.85
₹189.25
excl. GST
₹223.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
TPSMA20AHE3_B/H
₹189.25 for 5 + GST
Specifications
- Clamping Voltage
- 27.7V
- Operating Temperature
- -65℃~+185℃
- Peak Pulse Current (Ipp)
- 14.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 20V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 17.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.121 g
