LittelfuseDatasheet (PDF)
TPSMB12CA
16.7VC Clamp TVS DIODE DO-214AA(SMBJ)
DO-214AA(SMBJ)ROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMB12CA
- Store part #
- C1977134
- Package / case
- DO-214AA(SMBJ)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
115 in stock
#C1977134
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.91 | ₹101.91 |
| 10+ | ₹100.18 | ₹1,001.80 |
| 30+ | ₹99.09 | ₹2,972.70 |
| 100+ | ₹97.80 | ₹9,780.00 |
1 × ₹101.91
₹101.91
excl. GST
₹120.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel

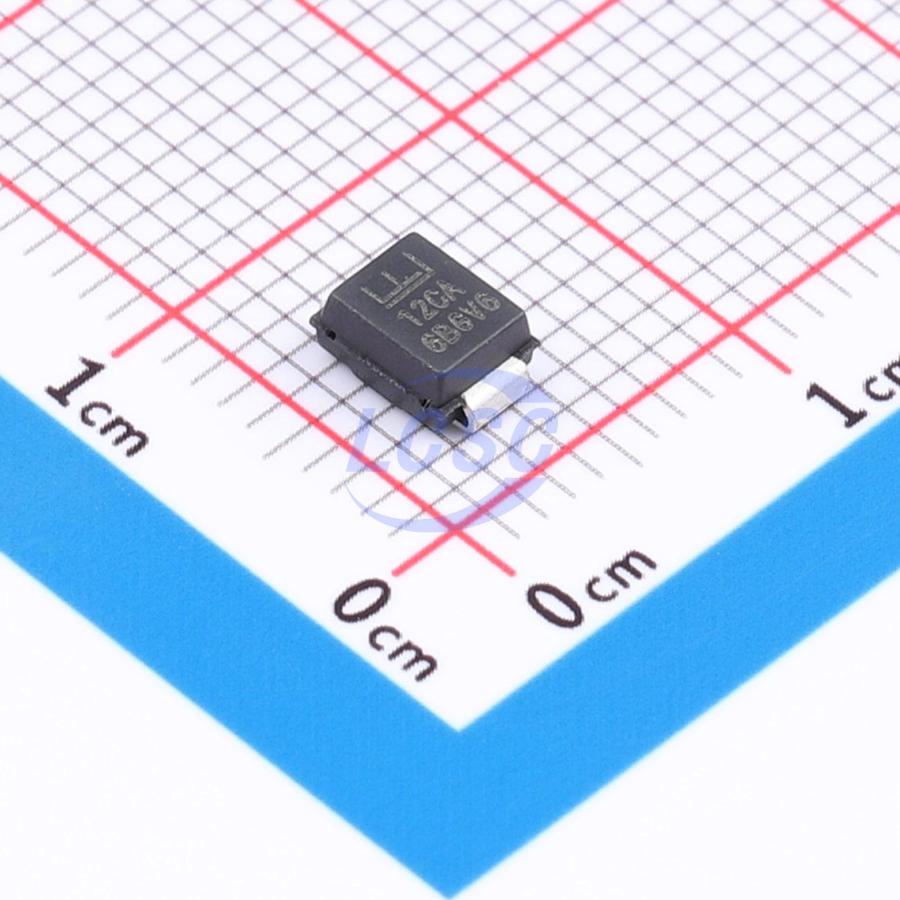

TPSMB12CA
₹101.91 for 1 + GST
Specifications
- Clamping Voltage
- 16.7V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 36.5A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 12.6V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 10.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.434 g
Overview
The TPSMB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Automotive applications.
Key features
- High reliability application and automotive grade AEC Q101 qualifed
- Surface mount component to optimize board space
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact)
- EFT protection of data lines in accordance with IEC 61000-4-4
- Glass passivated chip junction
- 600W PPPM (peak pulse power) capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- Fast response time: typically less than 1.0ns from 0V to VBR min
- Excellent clamping capability
- Low incremental surge resistance
- Typical IR ≤ 1μA for VR > 10.2 V
- UL Recognized compound meeting flammability rating V-0
- Meet MSL level1, per J-STD-020, High temperature soldering guaranteed: 260°C/10 seconds at terminals
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
