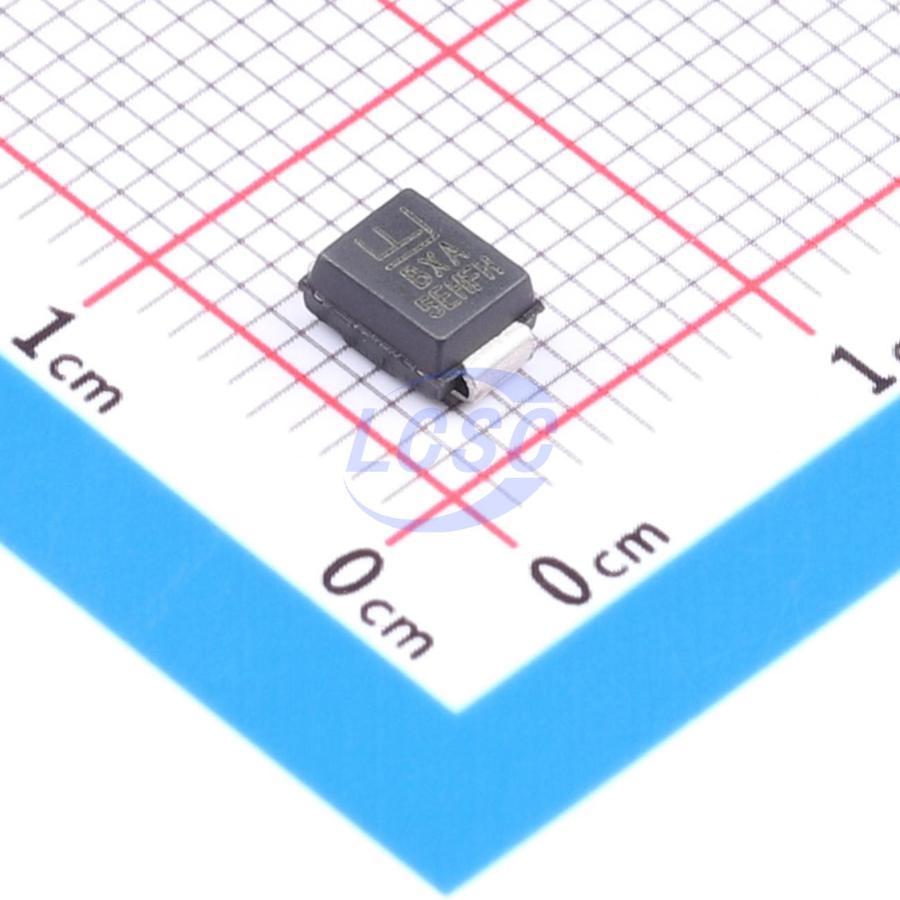

TPSMB22CA-VR

The TPSMB-VR series is designed to protect sensitive electronic equipment from voltage transients caused by lightning strikes and other transient voltage events.

Applications

• I/O interface protection
• Vcc bus protection
• Protection for other vulnerable circuits in automotive applications

Key features

• High-reliability applications, compliant with automotive-grade AEC Q101 standard
• Surface mount component for minimized board space
• Low-profile package
• Typical failure mode: short circuit under overvoltage or overcurrent conditions
• Whisker testing per Table 4a and 4c of JEDEC JESD201A
• ESD protection up to 30kV (air) and 30kV (contact) on data lines per IEC 61000-4-2
• EFT protection on data lines per IEC 61000-4-4
• Glass passivated chip junction
• 600W peak pulse power capability at 10/1000μs waveform with 0.01% repetition rate (duty cycle)
• Fast response time: typically less than 1.0ns from 0V to minimum breakdown voltage VBR
• Excellent clamping capability
• Low incremental surge resistance
• Typical reverse leakage current IR ≤ 1μA when VR > 10V
• Guaranteed high-temperature soldering: terminals withstand 260°C for 10 seconds
• UL recognized compound, V-0 flammability rating
• MSL Level 1 per J-STD-020, guaranteed high-temperature soldering
• Matte tin lead-free finish
• Halogen-free and RoHS compliant
• Lead-free E3 designation indicates second-level interconnect lead-free with tin (Sn) terminal finish (IPC/JEDEC J-STD-609A.01)
• UL 497B recognized as isolated loop circuit protector
