LittelfuseDatasheet (PDF)

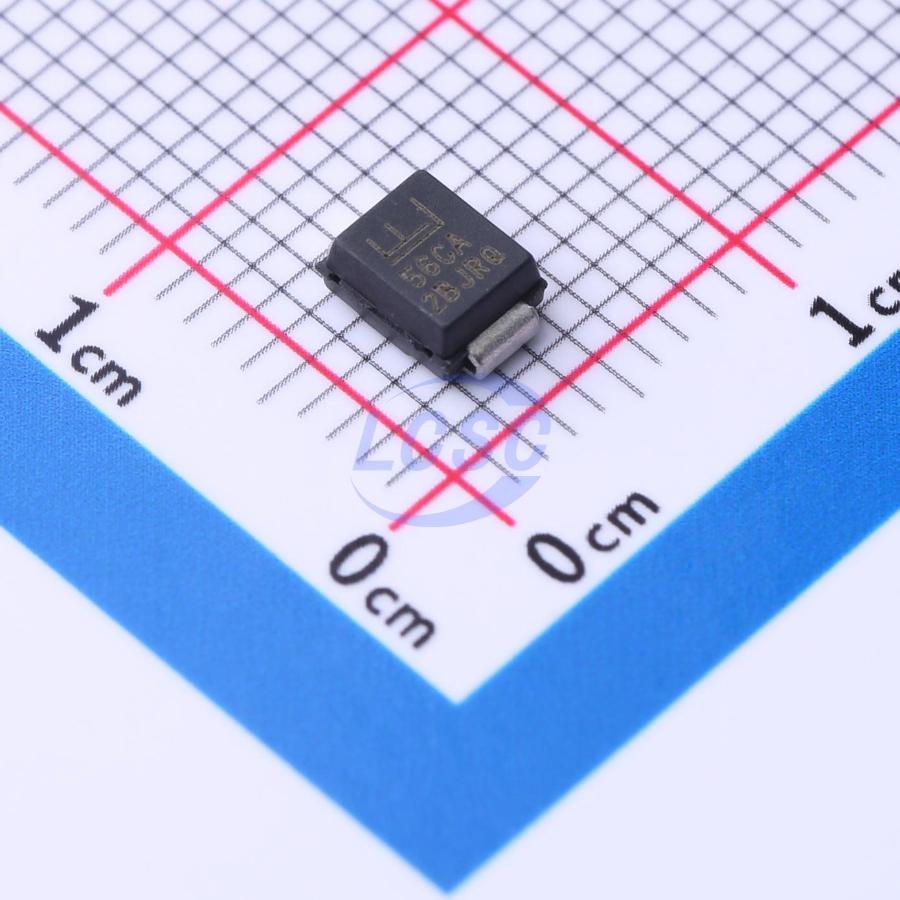

TPSMB56CA
77VC Clamp 7.9A Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 47.8VWM 77VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- TPSMB56CA
- Store part #
- C1975131
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C1975131
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.48 | ₹187.40 |
| 50+ | ₹31.63 | ₹1,581.50 |
| 150+ | ₹29.12 | ₹4,368.00 |
| 500+ | ₹26.00 | ₹13,000.00 |
| 3,000+ | ₹24.59 | ₹73,770.00 |
| 6,000+ | ₹23.76 | ₹1,42,560.00 |
5 × ₹37.48
₹187.40
excl. GST
₹221.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMB56CA
₹187.40 for 5 + GST
Specifications
- Clamping Voltage
- 77V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 7.9A
- Peak Pulse Power Dissipation (Ppp)
- 600W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 53.2V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 47.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
