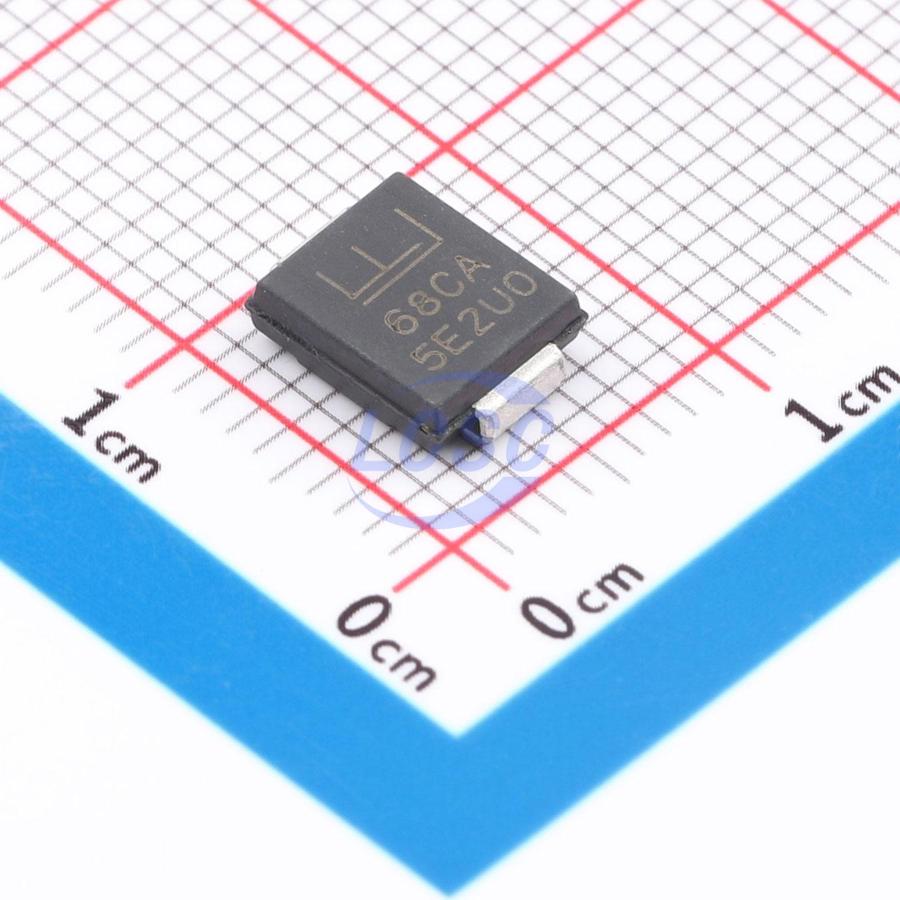

TPSMC68CA

The TPSMC series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Applications

• TVS Components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in Telecom, Computer, Industrial and Consumer electronic applications.

Key features

• High reliability application and automotive grade AEC - Q101 qualifed
• For surface mounted applications to optimize board space
• Low profile package
• Typical failure mode is short from over - specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
• ESD protection of data lines in accordance with IEC 61000 - 4 - 2
• EFT protection of data lines in accordance with IEC 61000 - 4 - 4
• Built - in strain relief
• Glass passivated chip junction
• 1500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
• Fast response time: typically less than 1.0ps from 0V to VBR min
• Excellent clamping capability
• Low incremental surge resistance
• Typical IR less than 1μA above 13V
• High temperature soldering guaranteed: 260°C/10 seconds at terminals
• UL Recognized body that meets flammability rating V - 0
• Meet MSL level1, per J - STD - 020, high temperature soldering guaranteed.
• Matte tin lead–free plated
• Halogen free and RoHS compliant
• Pb - free E3 means 2nd level interconnect is Pb - free and the terminal finish material is tin(Sn) (IPC/JEDEC J - STD609A.01)
• UL Recognized to ANSI/UL 497B: Protectors for Data Communications and FireAlarm Circuits
