TECH PUBLICDatasheet (PDF)

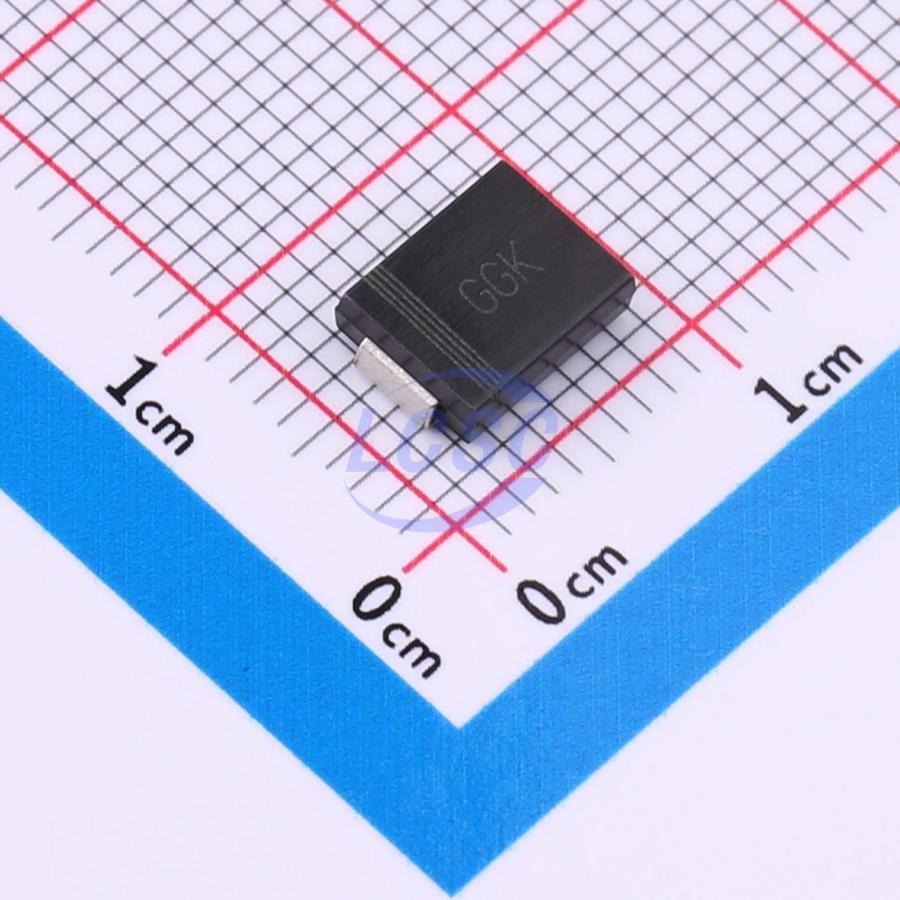

TPSMCJ60A
96.8VC Clamp 15.5A Ipp SMC
SMCRoHSActive
60VWM 96.8VC SMC
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMCJ60A
- Store part #
- C42370579
- Package / case
- SMC
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,790 in stock
#C42370579
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.32 | ₹86.60 |
| 50+ | ₹13.59 | ₹679.50 |
| 150+ | ₹11.72 | ₹1,758.00 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 2,500+ | ₹9.19 | ₹22,975.00 |
| 5,000+ | ₹8.64 | ₹43,200.00 |
5 × ₹17.32
₹86.60
excl. GST
₹102.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMCJ60A
₹86.60 for 5 + GST
Specifications
- Clamping Voltage
- 96.8V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 15.5A
- Peak Pulse Power Dissipation (Ppp)
- 1.5kW@10/1000us
- Voltage - Breakdown
- 66.7V
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 60V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.351 g
Overview
Applications
- Unidirectional device (indicated by cathode band)
- Bidirectional device (no cathode band)
- Any mounting orientation
Key features
- Peak power disspatiom 1500W@10x1000us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Glass passivated junction
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
