TECH PUBLICDatasheet (PDF)

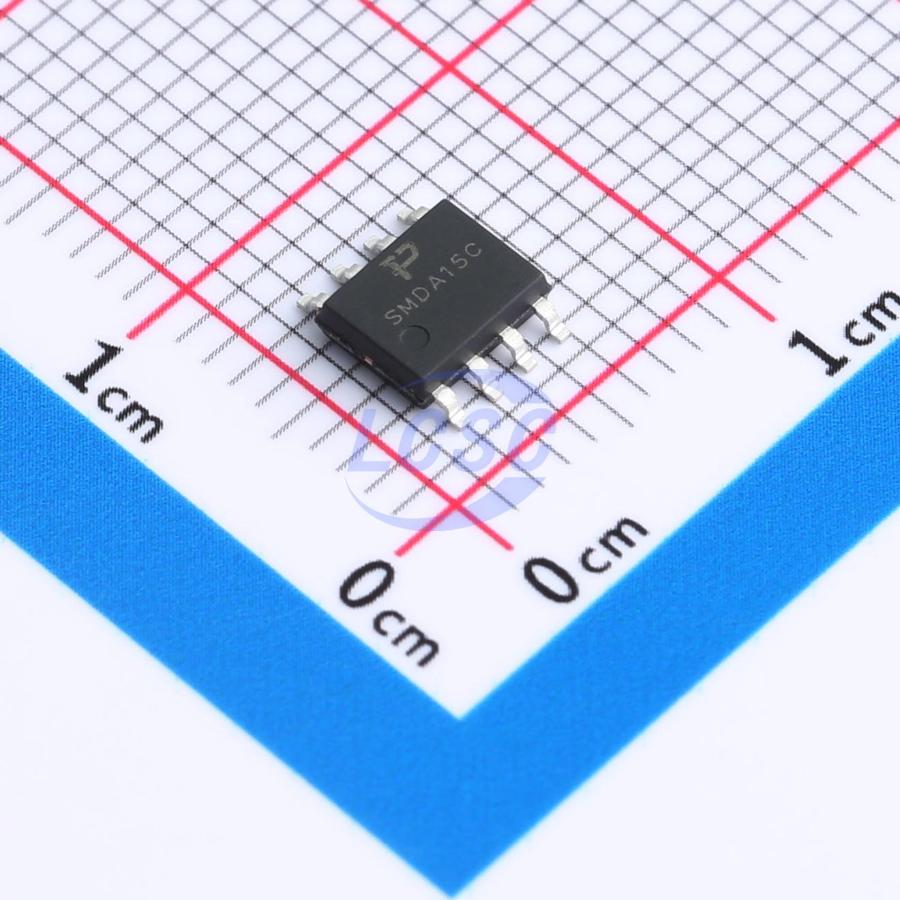

TPSMDA15C
35VC Clamp 8A@8/20us Ipp TVS DIODE SOP-8
SOP-8RoHSActive
TVS DIODE 15VWM 35VC SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMDA15C
- Store part #
- C19829564
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,215 in stock
#C19829564
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.75 | ₹178.75 |
| 50+ | ₹31.22 | ₹1,561.00 |
| 150+ | ₹29.29 | ₹4,393.50 |
| 500+ | ₹26.92 | ₹13,460.00 |
| 2,500+ | ₹25.85 | ₹64,625.00 |
| 5,000+ | ₹25.20 | ₹1,26,000.00 |
5 × ₹35.75
₹178.75
excl. GST
₹210.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPSMDA15C
₹178.75 for 5 + GST
Specifications
- Clamping Voltage
- 35V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Voltage - Breakdown
- 16V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.104 g
Overview
Applications
- Data and I/o Lines
- Microprocessor based equipment
- LAN/wAN equipment
- Serial and Parallel Ports
Key features
- Ultra low leakage: nA level
- Working voltages: 5V, 12V, 15V and 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- RoHS Compliant
