TECH PUBLICDatasheet (PDF)

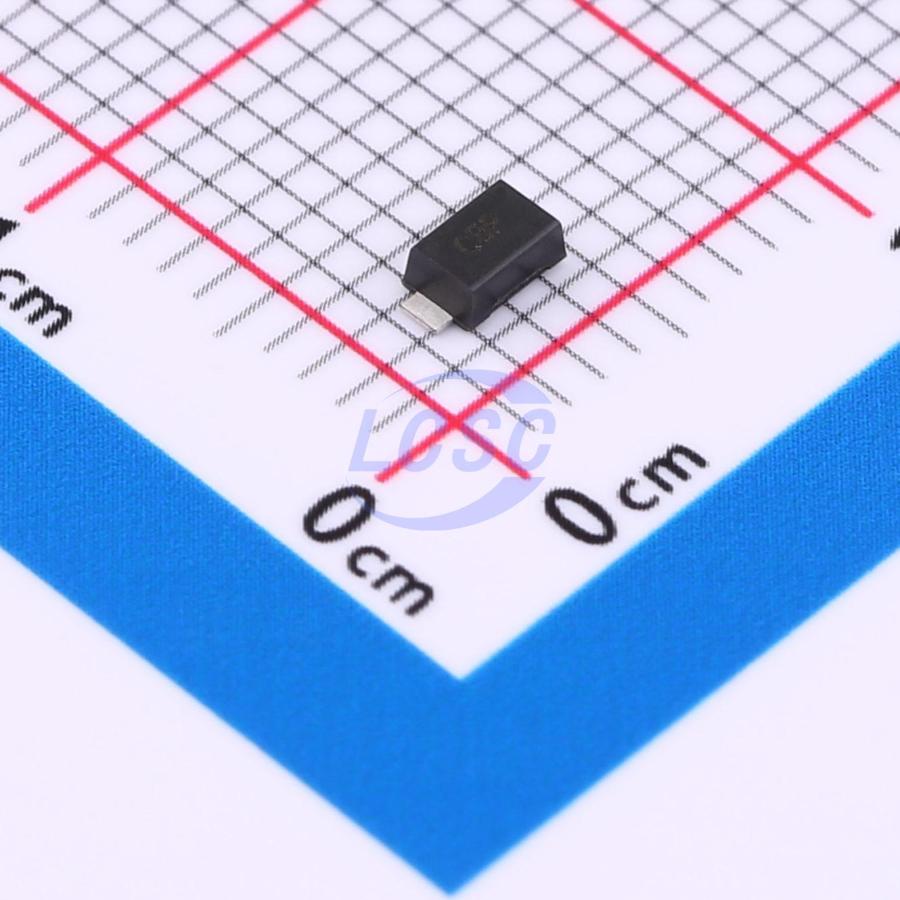

TPSMF16CA
26VC Clamp 7.7A@10/1000us Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 16VWM 26VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMF16CA
- Store part #
- C42440515
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,060 in stock
#C42440515
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.13 | ₹82.60 |
| 200+ | ₹3.28 | ₹656.00 |
| 600+ | ₹2.82 | ₹1,692.00 |
| 3,000+ | ₹2.32 | ₹6,960.00 |
| 9,000+ | ₹2.06 | ₹18,540.00 |
| 21,000+ | ₹1.93 | ₹40,530.00 |
20 × ₹4.13
₹82.60
excl. GST
₹97.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMF16CA
₹82.60 for 20 + GST
Specifications
- Clamping Voltage
- 26V
- Peak Pulse Current (Ipp)
- 7.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 19.7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 16V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.043 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
