TECH PUBLIC

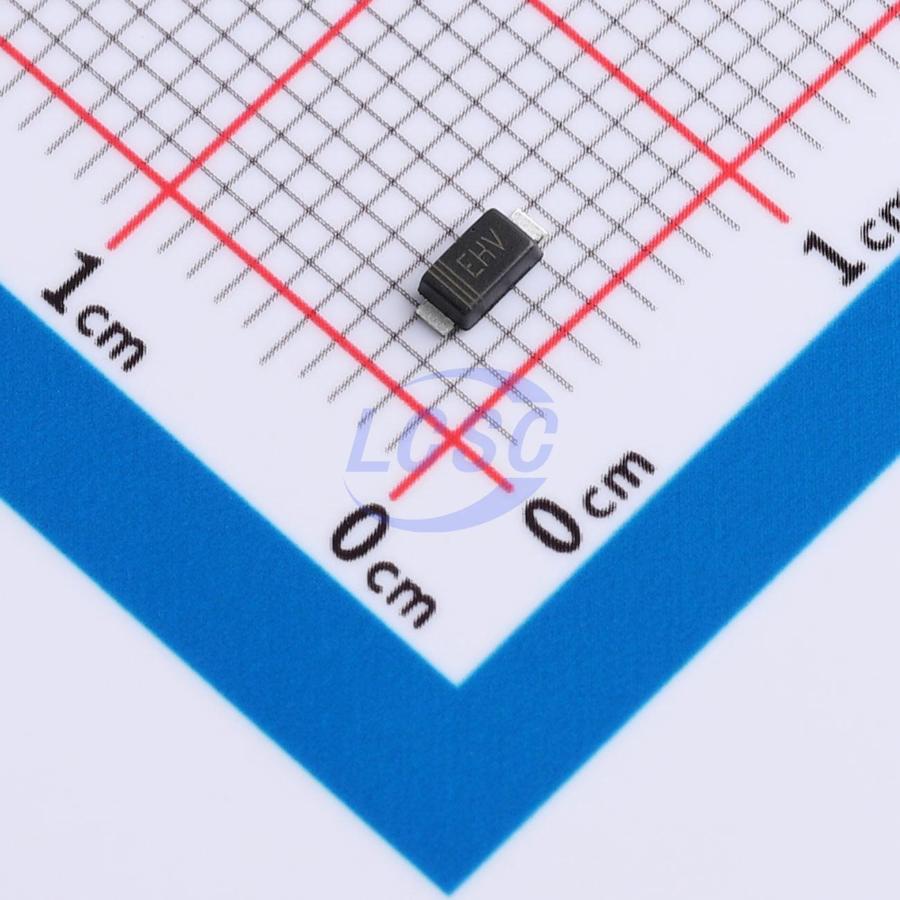

TPSMF4L9.0A

15.4V 26A@10/1000us 400W@10/1000us 11.1V Unidirectional 9V SOD-123FL TVS Diodes

SOD-123FLRoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TPSMF4L9.0A
Store part #: C52145947
Package / case: SOD-123FL
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C52145947

Stock & price checked 15 days ago

Quantity	Unit price	Pack price
10+	₹7.79	₹77.90
100+	₹6.11	₹611.00
300+	₹5.27	₹1,581.00
3,000+	₹4.63	₹13,890.00
6,000+	₹4.13	₹24,780.00
9,000+	₹3.88	₹34,920.00

Quantity (min 10, multiples of 10)

10 × ₹7.79

₹77.90

excl. GST

₹91.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPSMF4L9.0A

₹77.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15.4V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 26A@10/1000us
Peak Pulse Power Dissipation (Ppp): 400W@10/1000us
Number of Channels: 1
Voltage - Breakdown: 11.1V
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 5uA
Reverse Stand-Off Voltage (Vrwm): 9V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.041 g

Overview

Applications

Input/Output (I/O) interfaces
Power lines
Telecommunications
Industrial electronics
Consumer electronics

Key features

400W peak pulse power (10/1000μs)
Unidirectional and bidirectional protection
Fast response time: typically <1ns
Excellent clamping capability
Built-in stress relief
Low inductance
Low-profile package
IEC 61000-4-2 (ESD) ±30kV (air discharge), ±30kV (contact discharge)
Moisture Sensitivity Level (MSL): Level 1
