TECH PUBLICDatasheet (PDF)

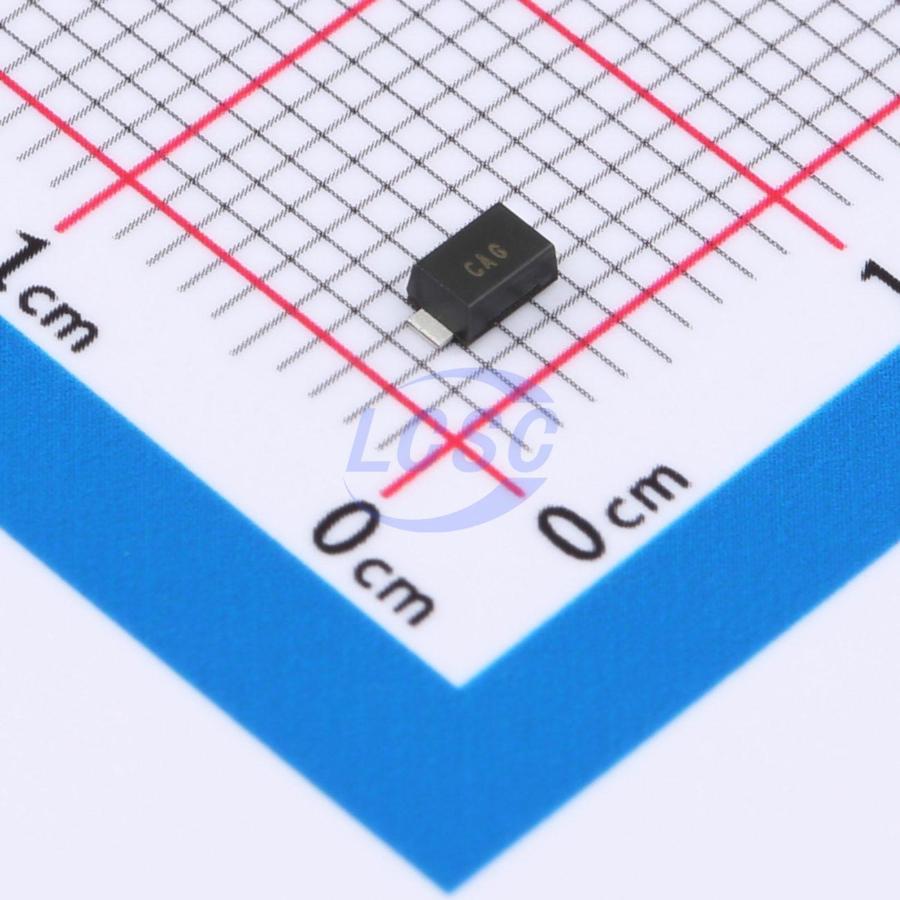

TPSMF6.0CA
10.3VC Clamp 19.4A@10/1000us Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 6VWM 10.3VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSMF6.0CA
- Store part #
- C42440521
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
940 in stock
#C42440521
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.15 | ₹83.00 |
| 200+ | ₹3.32 | ₹664.00 |
| 600+ | ₹2.86 | ₹1,716.00 |
| 3,000+ | ₹2.32 | ₹6,960.00 |
| 9,000+ | ₹2.06 | ₹18,540.00 |
| 21,000+ | ₹1.93 | ₹40,530.00 |
20 × ₹4.15
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSMF6.0CA
₹83.00 for 20 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 19.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 200W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 400uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.042 g
Overview
Applications
- Personal digital assistants (PDA)
- Cellular handsets & Accessories
- Handhelds and notebooks
- Portable instrumentation
Key features
- Peak power disspation: 200W@10×1000 us Pluse
- Low incremental surge resistance
- Excellent clamping capability
- Fast response time
- Low leakage current
- Halogen free and RoHS compliant
