TECH PUBLICDatasheet (PDF)

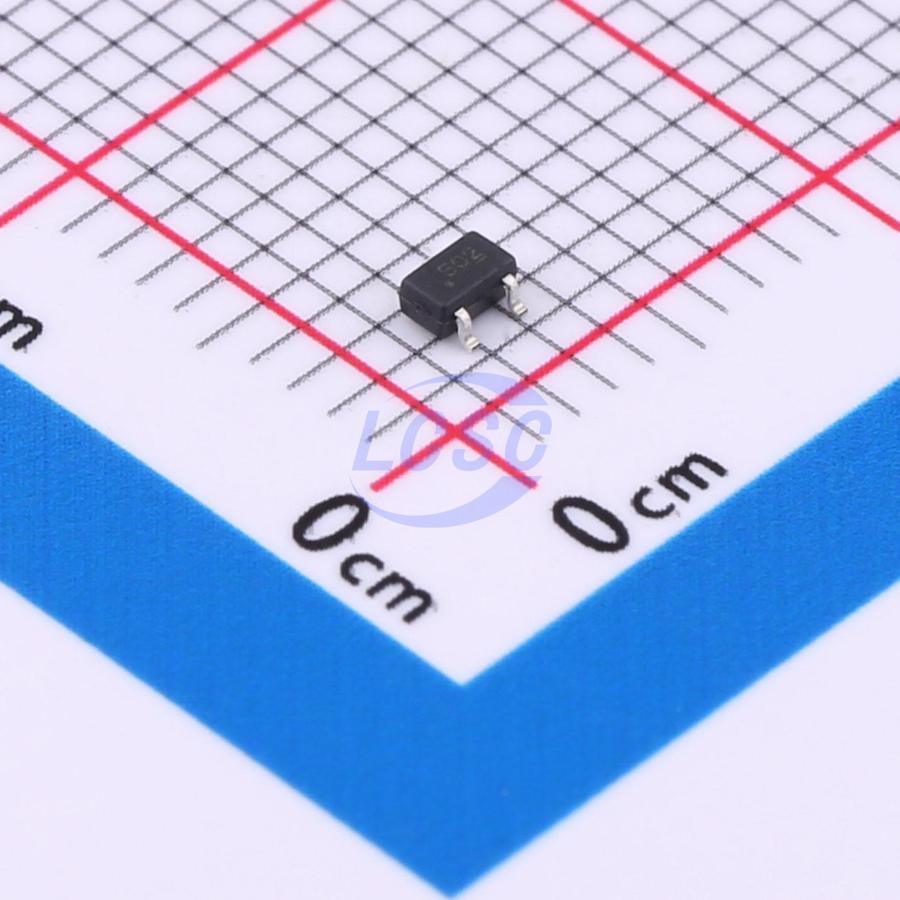

TPSP0502BAJTG
10VC 18VC Clamp 8A@8/20us Ipp SOT-23
SOT-323RoHSActive
5.5VWM 10VC 18VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP0502BAJTG
- Store part #
- C19829474
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,145 in stock
#C19829474
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.55 | ₹72.75 |
| 50+ | ₹11.43 | ₹571.50 |
| 150+ | ₹9.87 | ₹1,480.50 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 3,000+ | ₹7.77 | ₹23,310.00 |
| 6,000+ | ₹7.29 | ₹43,740.00 |
5 × ₹14.55
₹72.75
excl. GST
₹85.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSP0502BAJTG
₹72.75 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.396 g
Overview
Applications
- USB power and data line protection
- Monitors and flat panel displays
- I²C bus protection
- Portable instruments
- Set-top boxes
Key features
- 150W peak pulse power (tp = 8/20μs)
- High-speed data line transient protection, compliant with IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact), IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltage: 5.5V
- Protects one bidirectional line or two unidirectional lines
- Low working voltage and clamping voltage
- Solid-state silicon avalanche technology
