TECH PUBLICDatasheet (PDF)

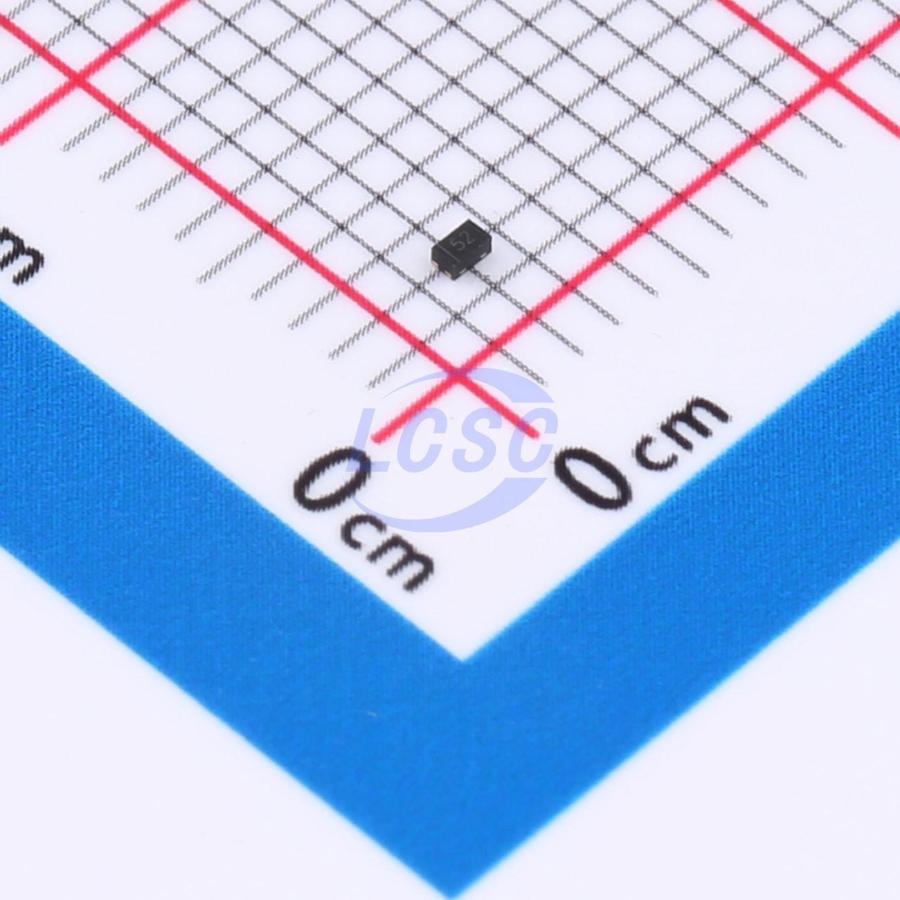

TPSP3222-02ETG
nan
DFN1006-3RoHSActive
3.3VWM 15VC DFN1006-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSP3222-02ETG
- Store part #
- C47117640
- Package / case
- DFN1006-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
900 in stock
#C47117640
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.07 | ₹101.40 |
| 200+ | ₹4.04 | ₹808.00 |
| 600+ | ₹3.45 | ₹2,070.00 |
| 2,000+ | ₹3.12 | ₹6,240.00 |
| 10,000+ | ₹2.54 | ₹25,400.00 |
| 20,000+ | ₹2.38 | ₹47,600.00 |
20 × ₹5.07
₹101.40
excl. GST
₹119.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPSP3222-02ETG
₹101.40 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 2
- Voltage - Breakdown
- 6.1V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.007 g
Overview
Applications
- Cellular Handsets & Accessories
- Digital Visual Interface (DVI)
- Display Port
- MDDI Ports
- USB Ports
- PCI Express
- Serial ATA
Key features
- Ultra small package: 1.0×0.6×0.5mm
- Ultra low capacitance: 0.3pF typical (1/O-1/0)
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- 3-pin leadless package
- Up to 2-line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
