TECH PUBLICDatasheet (PDF)

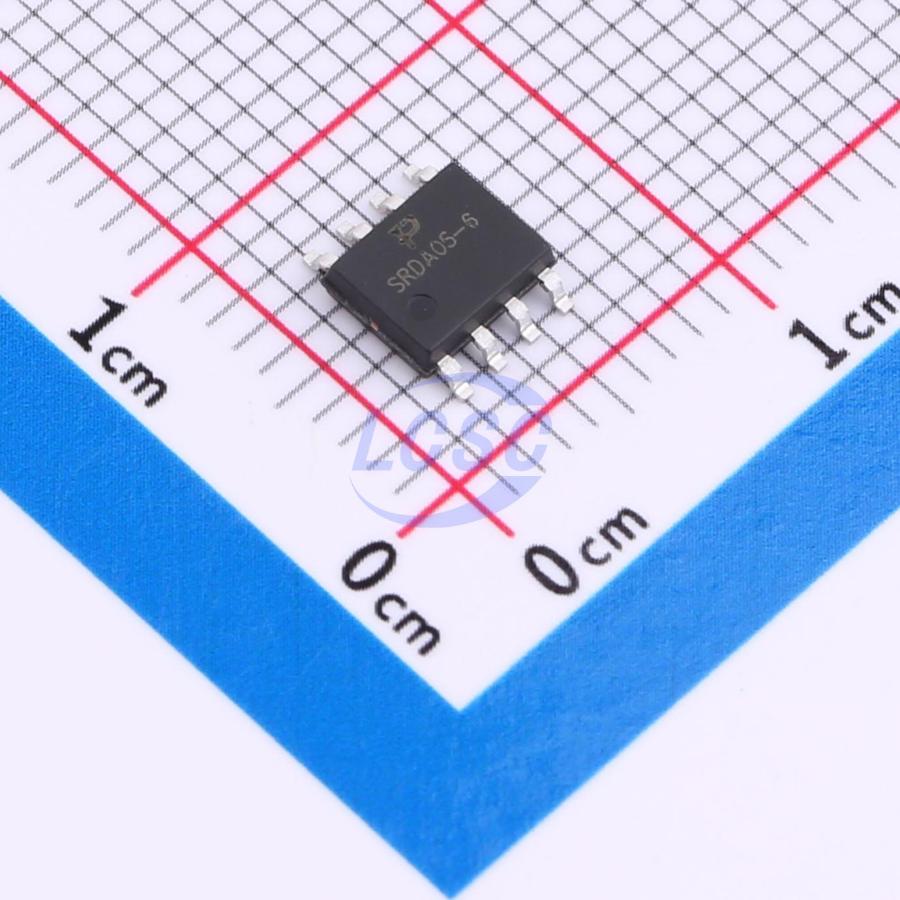

TPSRDA05-6
20VC Clamp 25A@8/20us Ipp SOP-8
SOP-8RoHSActive
5VWM 20VC SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSRDA05-6
- Store part #
- C19829600
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C19829600
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.13 | ₹82.13 |
| 10+ | ₹73.21 | ₹732.10 |
| 30+ | ₹68.65 | ₹2,059.50 |
| 100+ | ₹64.31 | ₹6,431.00 |
| 500+ | ₹61.70 | ₹30,850.00 |
| 1,000+ | ₹60.18 | ₹60,180.00 |
1 × ₹82.13
₹82.13
excl. GST
₹96.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSRDA05-6
₹82.13 for 1 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- USB Power & Data Line Protection
- T1/E1 secondary IC Side Protection
- Token Ring HDSL, SDSL secondary IC Side Protection
Key features
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC 61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC 61000 - 4 - 5 (Lightning) 25A (8/20 μs)
- RoHS Compliant
