TECH PUBLICDatasheet (PDF)

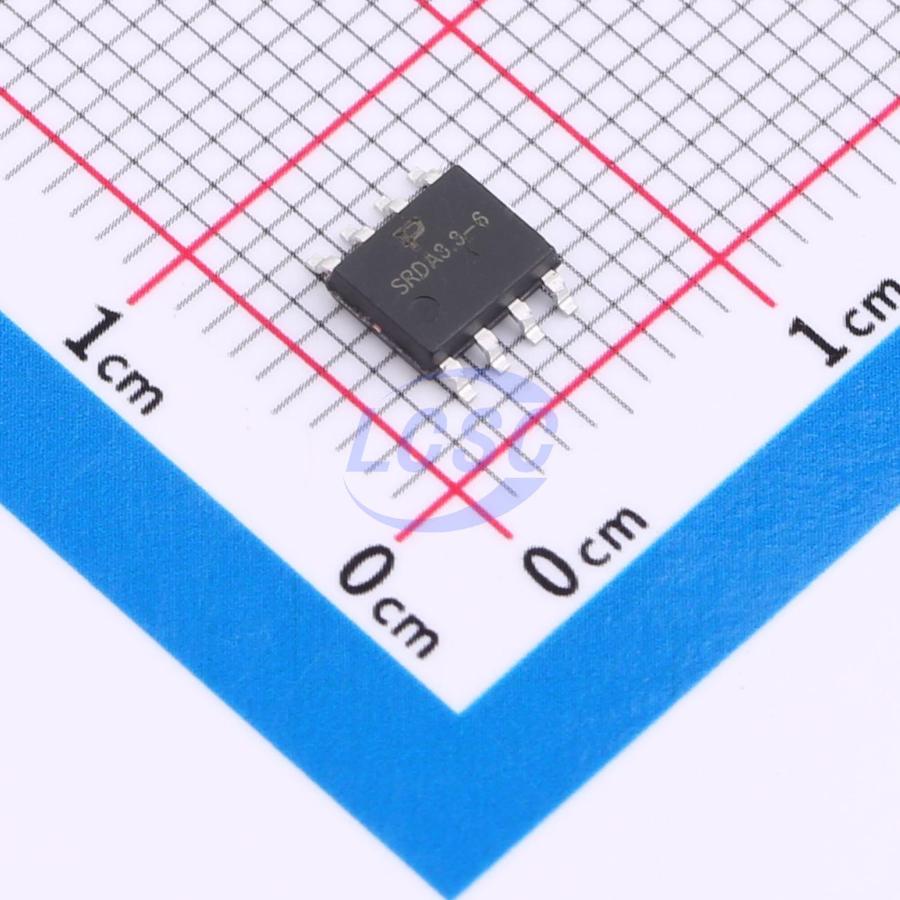

TPSRDA3.3-6
15VC Clamp 25A@8/20us Ipp SOP-8
SOP-8RoHSActive
3.3VWM 15VC SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSRDA3.3-6
- Store part #
- C19829582
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,741 in stock
#C19829582
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.51 | ₹84.51 |
| 10+ | ₹75.40 | ₹754.00 |
| 30+ | ₹71.05 | ₹2,131.50 |
| 100+ | ₹66.48 | ₹6,648.00 |
| 500+ | ₹63.87 | ₹31,935.00 |
| 1,000+ | ₹62.35 | ₹62,350.00 |
1 × ₹84.51
₹84.51
excl. GST
₹99.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSRDA3.3-6
₹84.51 for 1 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- USB Power & Data Line Protection
- T1/E1 secondary IC Side Protection
- Token Ring HDSL, SDSL secondary IC Side Protection
Key features
- Ultralow leakage: nA level
- Operating voltage: 3.3V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 25A (8/20 μs)
- RoHS Compliant
