TECH PUBLICDatasheet (PDF)

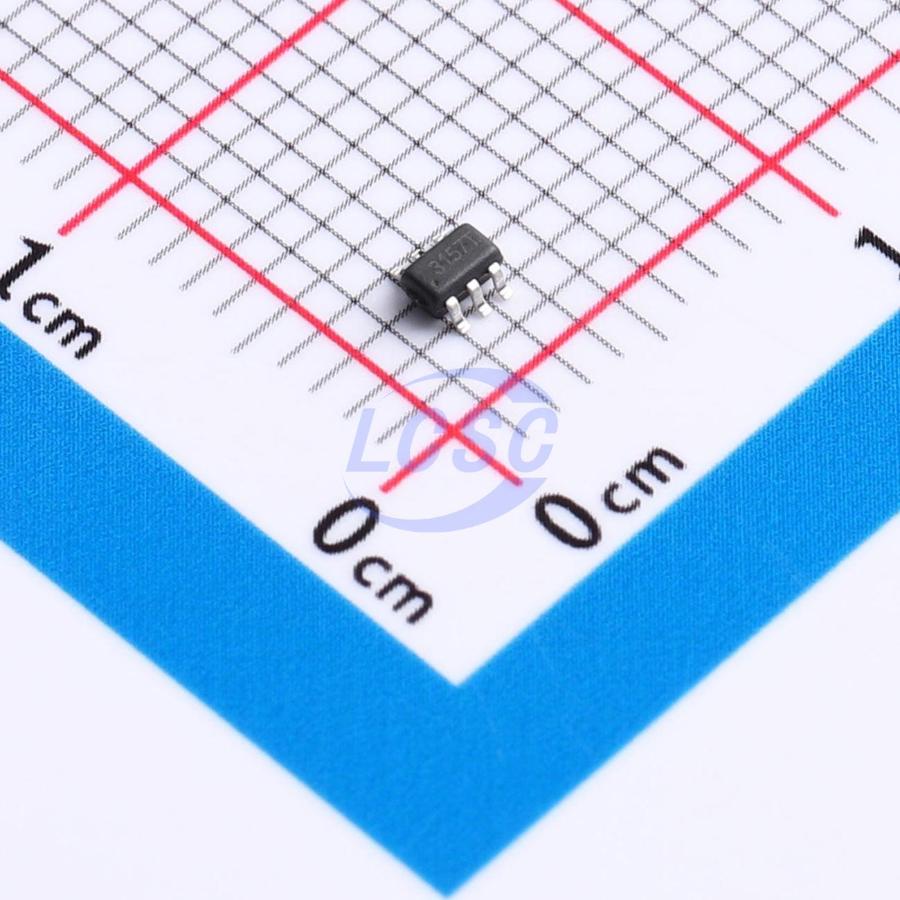

TPSTG3157CTR
20Ω 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS
SOT-363ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTG3157CTR
- Store part #
- C49375127
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,540 in stock
#C49375127
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.56 | ₹65.60 |
| 100+ | ₹5.19 | ₹519.00 |
| 300+ | ₹4.50 | ₹1,350.00 |
| 3,000+ | ₹3.98 | ₹11,940.00 |
| 6,000+ | ₹3.57 | ₹21,420.00 |
| 9,000+ | ₹3.37 | ₹30,330.00 |
10 × ₹6.56
₹65.60
excl. GST
₹77.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPSTG3157CTR
₹65.60 for 10 + GST
Specifications
- Features
- Power-off isolation;Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Ron
- 20Ω
- Voltage - Supply
- 1.65V~5.5V
- Con
- 7pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
This is a low-voltage single-pole double-throw analog switch designed for signal multiplexing in chopper, modulation/demodulation, signal gating, and analog-to-digital and digital-to-analog conversion systems.
Applications
- Mobile phones and TWS earphones
- Audio, video, UART, USB2.0 signal and power routing
Key features
- Low on-resistance: Ron = 6Ω at A = 5V
- 1.8V logic-compatible control pins
- A pin can override VCC for true isolation, even during power failure
- High off-state isolation: -100dB at 100KHz
- Low channel-to-channel crosstalk: -97dB at 100KHz
- High bandwidth (-3dB @ 340MHz) for USB2.0 high-speed signal routing
- Low quiescent current (<2μA) with wide supply voltage range (1.65V ~ 5.5V)
