TECH PUBLICDatasheet (PDF)

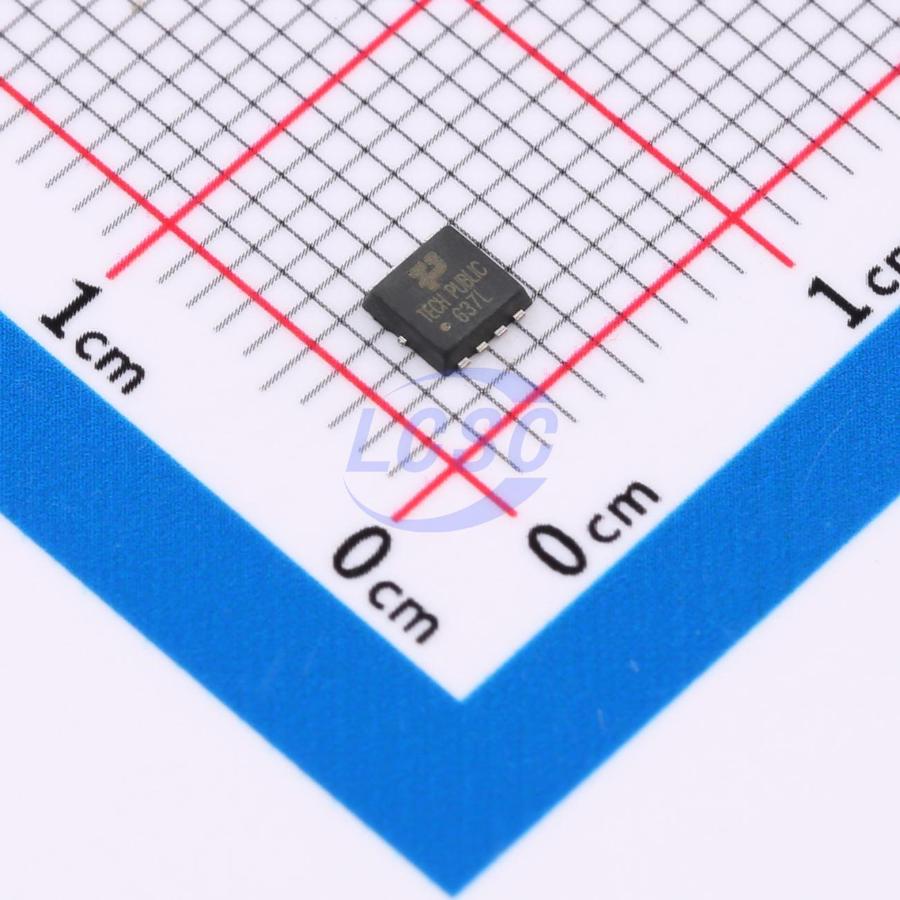

TPSTL50N6F7
N-Channel 60V 38A Surface Mount PDFN-8(3x3)
PDFN-8(3x3)ROHS CompliantActive
MOSFET N-CH 60V 38A PDFN-8(3x3)
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPSTL50N6F7
- Store part #
- C49230915
- Package / case
- PDFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C49230915
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.87 | ₹234.35 |
| 50+ | ₹37.22 | ₹1,861.00 |
| 150+ | ₹33.08 | ₹4,962.00 |
| 500+ | ₹27.92 | ₹13,960.00 |
| 2,500+ | ₹25.61 | ₹64,025.00 |
| 5,000+ | ₹24.24 | ₹1,21,200.00 |
5 × ₹46.87
₹234.35
excl. GST
₹276.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
TPSTL50N6F7
₹234.35 for 5 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 161.9pF
- Current - Continuous Drain(Id)
- 38A
- Ciss-Input Capacitance
- 3.0683nF
- Pd - Power Dissipation
- 41W
- Reverse Transfer Capacitance (Crss)
- 104.7pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.1nC@4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
This N-channel MOSFET utilizes advanced trench technology and design to achieve excellent on-resistance (RDS(on)) with low gate charge. It is suitable for a wide range of applications.
Applications
- Load/Power Switch
- Interface Switch
- Ultra-compact Portable Device Battery Management
- Electronic Equipment
- Logic Level Translation
Key features
- VDS = 30 V, ID = 60 A, RDS(ON) < 8.5 mΩ at VGS = 10 V
- Low gate charge
- RoHS-compliant devices available
- Advanced high cell density trench technology for ultra-low RDS(ON)
- Excellent package thermal dissipation performance
