TECH PUBLIC

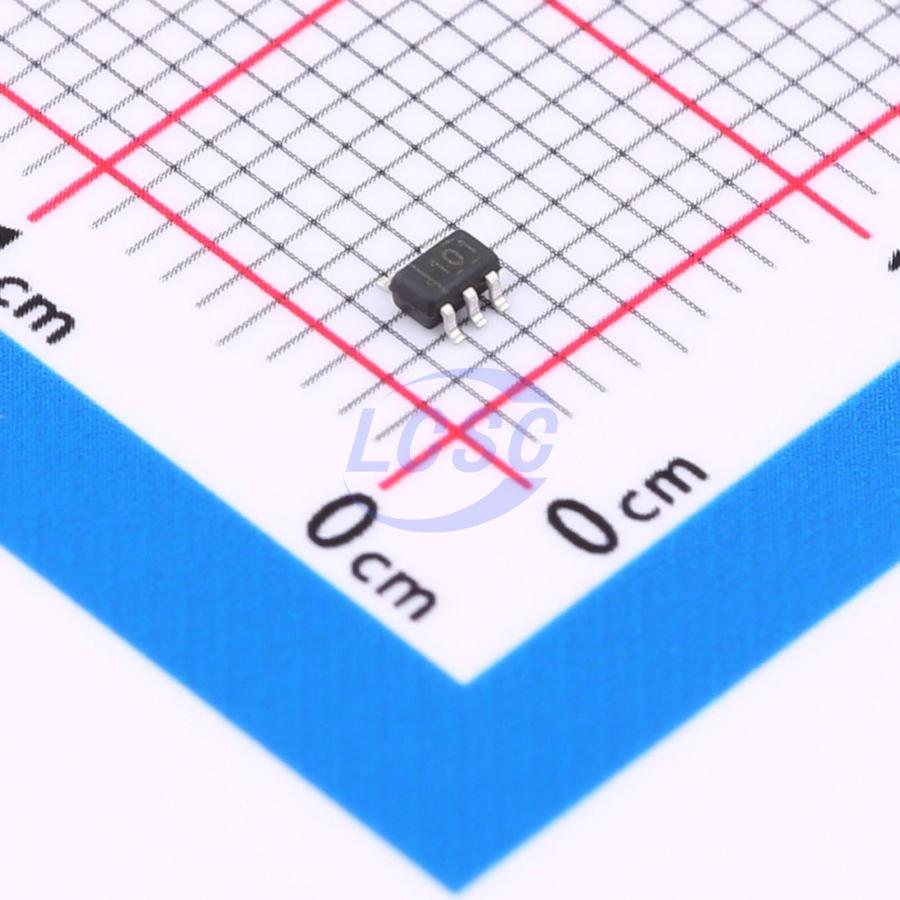

TPTMUX1101DCKR

1 2.8Ω 1.6V~5.5V SOT-353 Analog Switches, Multiplexers, Demultiplexers

SOT-353RoHSActive

Single-Supply SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TPTMUX1101DCKR
Store part #: C46472255
Package / case: SOT-353
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,718 in stock

#C46472255

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹47.38	₹47.38
10+	₹41.29	₹412.90
30+	₹38.90	₹1,167.00
100+	₹35.64	₹3,564.00
500+	₹34.12	₹17,060.00
1,000+	₹33.25	₹33,250.00

Quantity (min 1)

1 × ₹47.38

₹47.38

excl. GST

₹55.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPTMUX1101DCKR

₹47.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 2.8Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.029 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intended for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Rₒₙ = 2.8Ω
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-isolation: -100dB @ 100kHz
Low Channel-to-Channel Crosstalk: -97dB @ 100kHz
High Bandwidth (-3dB @ 400MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
