TECH PUBLICDatasheet (PDF)

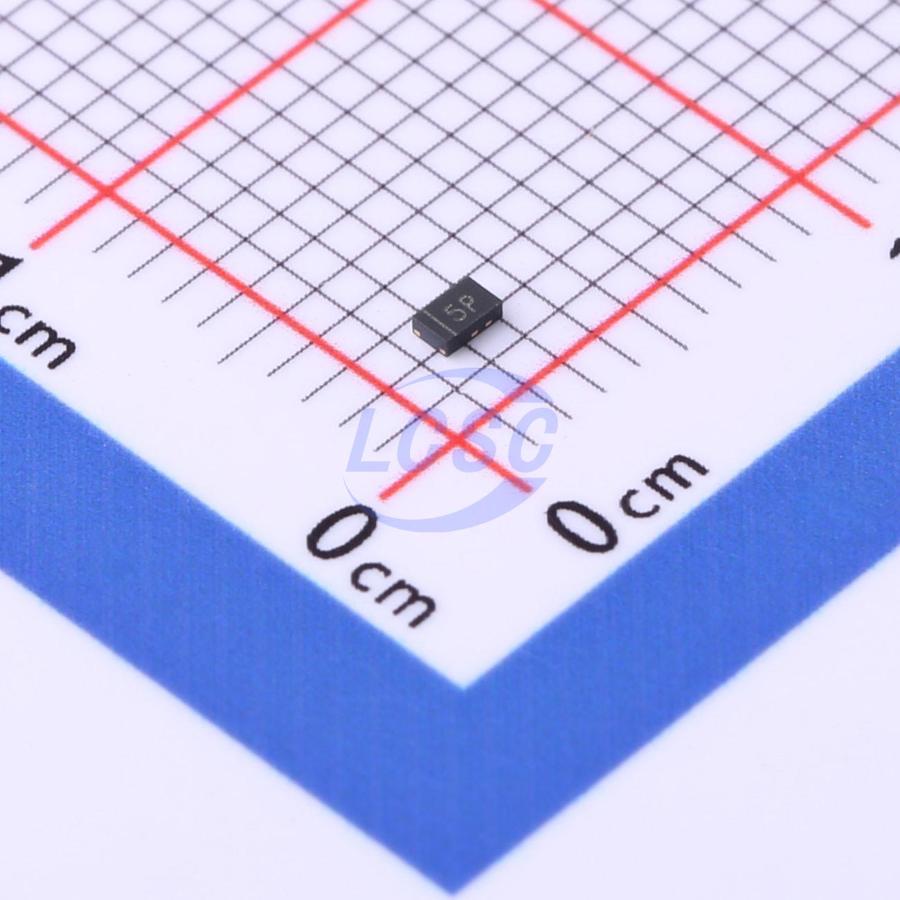

TPTVS0571P
11VC Clamp 110A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
5VWM 11VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS0571P
- Store part #
- C2844712
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,575 in stock
#C2844712
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.32 | ₹136.60 |
| 50+ | ₹21.84 | ₹1,092.00 |
| 150+ | ₹19.50 | ₹2,925.00 |
| 500+ | ₹16.58 | ₹8,290.00 |
| 3,000+ | ₹13.49 | ₹40,470.00 |
| 6,000+ | ₹12.71 | ₹76,260.00 |
5 × ₹27.32
₹136.60
excl. GST
₹161.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS0571P
₹136.60 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 110A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.2kW@8/20us
- Voltage - Breakdown
- 7.6V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
Applications
- Power Management
- Industrial Application Power Supply Protection
- Many other portable devices
Key features
- 1200W peak pulse power (8/20s)
- Low leakage: nA level
- Low operating voltage: 5V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 115A (8/20μs)
- RoHS Compliant
