TECH PUBLICDatasheet (PDF)

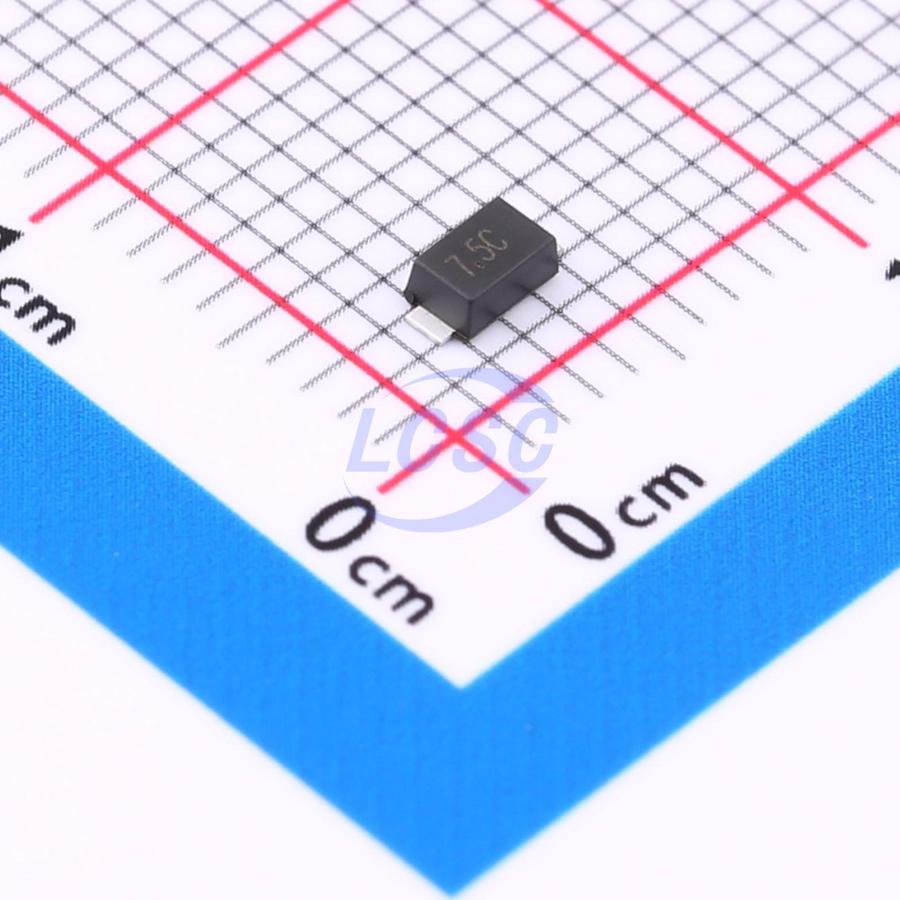

TPTVS07B1F
20VC Clamp 180A@8/20us Ipp TVS DIODE SOD-123FL
SOD-123FLRoHSActive
TVS DIODE 7VWM 20VC SOD-123FL
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS07B1F
- Store part #
- C46472251
- Package / case
- SOD-123FL
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C46472251
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.62 | ₹76.20 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.15 | ₹1,545.00 |
| 3,000+ | ₹4.52 | ₹13,560.00 |
| 6,000+ | ₹4.04 | ₹24,240.00 |
| 9,000+ | ₹3.78 | ₹34,020.00 |
10 × ₹7.62
₹76.20
excl. GST
₹89.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS07B1F
₹76.20 for 10 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 650W@8/20us
- Voltage - Breakdown
- 7.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 20uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Key features
- For surface mounted applications
- Excellent clamping capability
- IEC-61000-4-2 ESD 30KV(Air), 30KV(Contact)
