TECH PUBLICDatasheet (PDF)

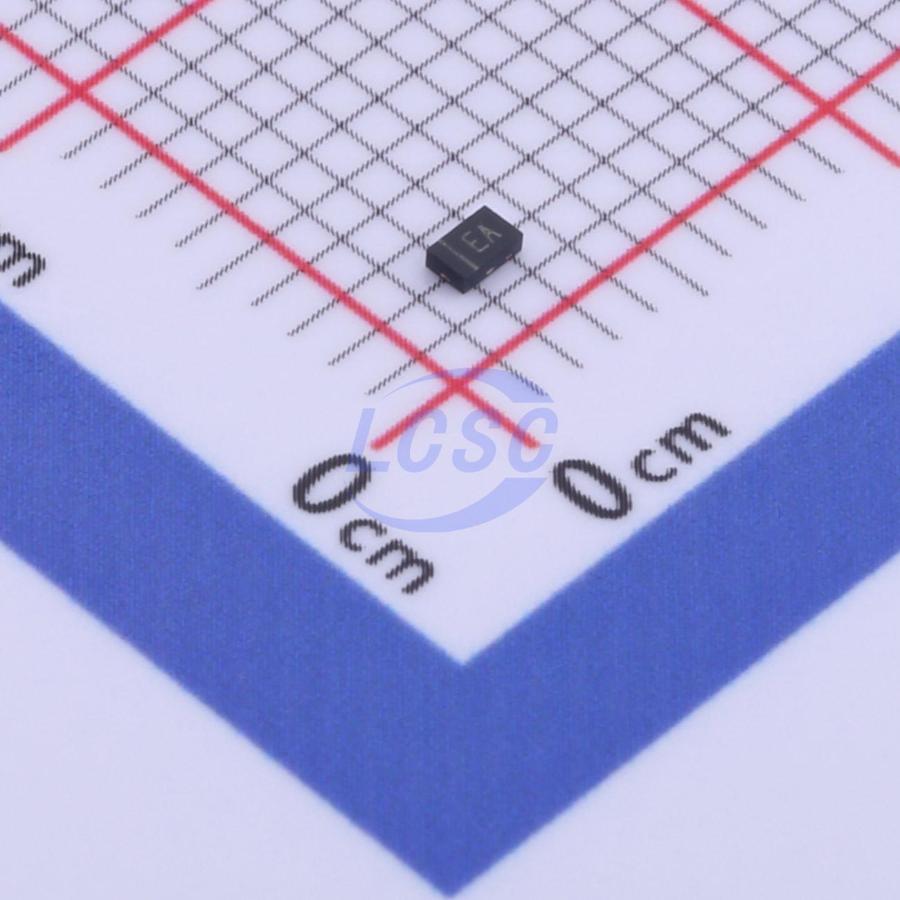

TPTVS1271P
21VC 25VC Clamp 76A@8/20us Ipp ESD DIODE DFN1610-2
DFN1610-2RoHSActive
ESD DIODE 12VWM 21VC 25VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS1271P
- Store part #
- C2682292
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,845 in stock
#C2682292
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.25 | ₹136.25 |
| 50+ | ₹21.80 | ₹1,090.00 |
| 150+ | ₹19.47 | ₹2,920.50 |
| 500+ | ₹16.55 | ₹8,275.00 |
| 3,000+ | ₹13.49 | ₹40,470.00 |
| 6,000+ | ₹12.71 | ₹76,260.00 |
5 × ₹27.25
₹136.25
excl. GST
₹160.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS1271P
₹136.25 for 5 + GST
Specifications
- Clamping Voltage
- 21V;25V
- Peak Pulse Current (Ipp)
- 76A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Voltage - Breakdown
- 15V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.021 g
Overview
Applications
- Power Management
- Industrial Application Power Supply Protection
- Many other portable devices
Key features
- 1800W peak pulse power (8/20μs)
- Low leakage: nA level
- Low operating voltage: 12V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 76A (8/20μs)
- RoHS Compliant
