TECH PUBLICDatasheet (PDF)

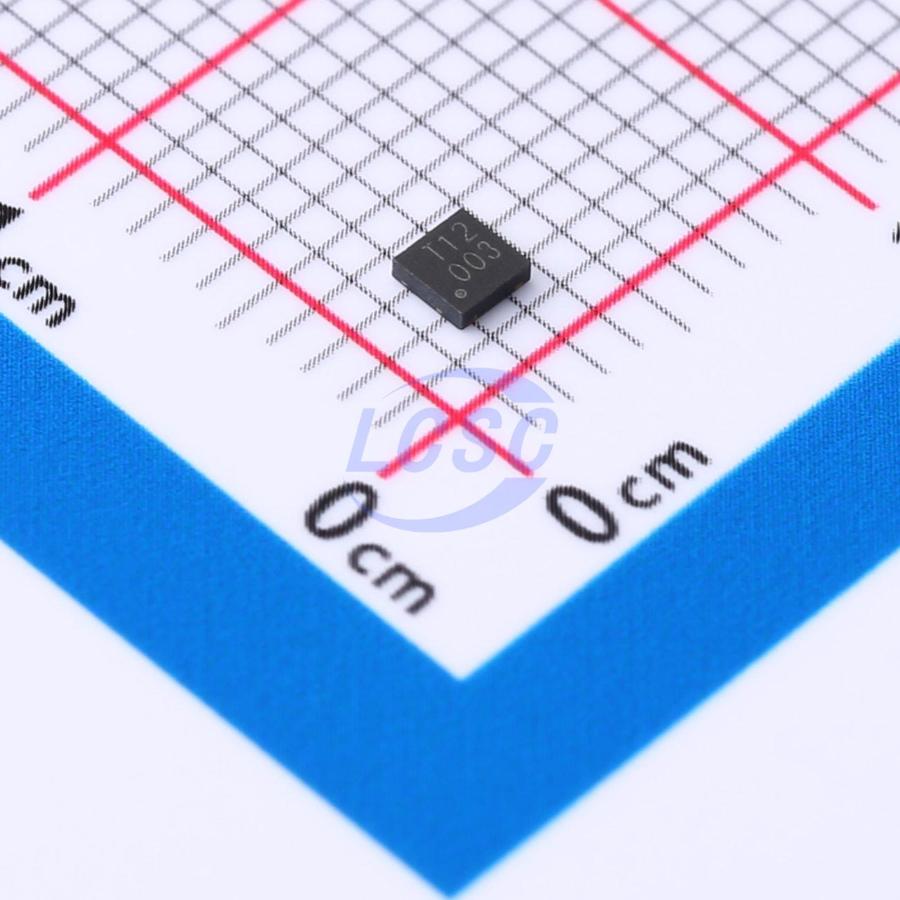

TPTVS1293D3
15VC 30VC Clamp 200A@8/20us Ipp DFN2x2-3
DFN2x2-3RoHSActive
12VWM 15VC 30VC DFN2x2-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS1293D3
- Store part #
- C5311020
- Package / case
- DFN2x2-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,520 in stock
#C5311020
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.31 | ₹71.55 |
| 50+ | ₹12.78 | ₹639.00 |
| 150+ | ₹12.03 | ₹1,804.50 |
| 500+ | ₹11.46 | ₹5,730.00 |
| 3,000+ | ₹9.68 | ₹29,040.00 |
| 6,000+ | ₹9.46 | ₹56,760.00 |
5 × ₹14.31
₹71.55
excl. GST
₹84.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS1293D3
₹71.55 for 5 + GST
Specifications
- Clamping Voltage
- 30V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 200A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 6kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 13V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
Applications
- Power Management
- Industrial Applications
- Power Protection
Key features
- Ultra-low leakage: nA-level
- Operating voltage: 12V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±30kV
- IEC 61000-4-5 (surge) 200A (8/20μs)
- RoHS compliant
