TECH PUBLICDatasheet (PDF)

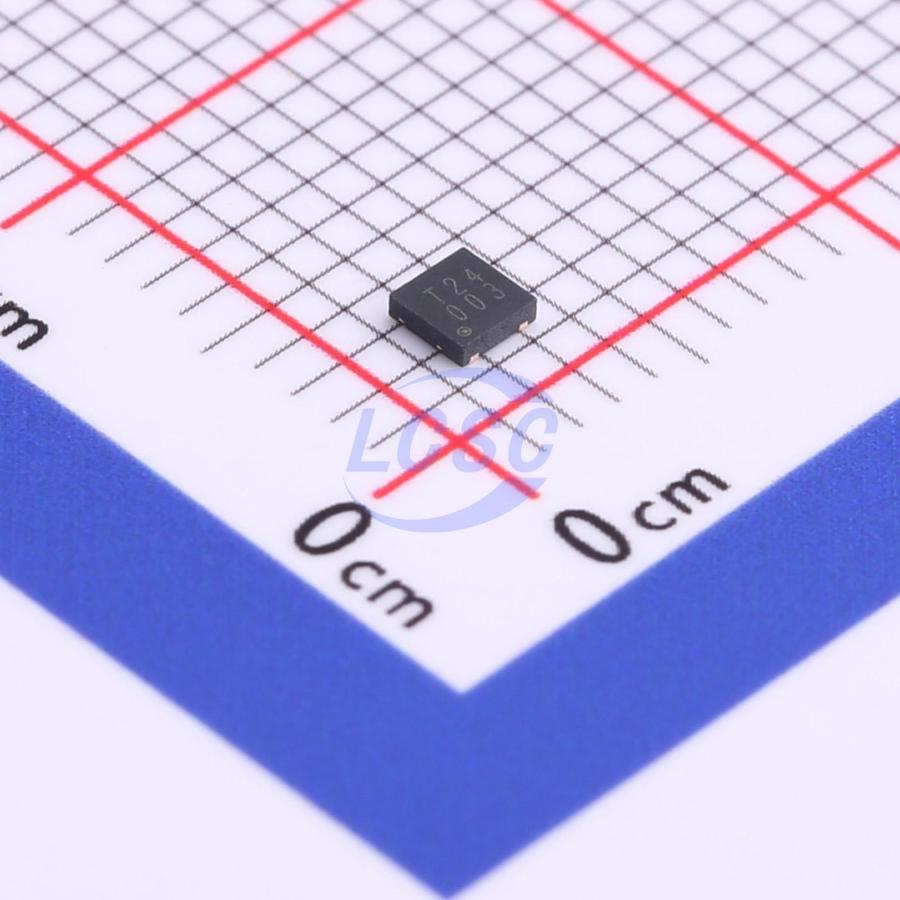

TPTVS2491D3
nan
DFN2020RoHSActive
24VWM 60VC DFN2020
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPTVS2491D3
- Store part #
- C2827710
- Package / case
- DFN2020
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,545 in stock
#C2827710
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.89 | ₹84.45 |
| 50+ | ₹16.52 | ₹826.00 |
| 150+ | ₹16.27 | ₹2,440.50 |
| 500+ | ₹16.02 | ₹8,010.00 |
5 × ₹16.89
₹84.45
excl. GST
₹99.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPTVS2491D3
₹84.45 for 5 + GST
Specifications
- Clamping Voltage
- 60V
- Peak Pulse Current (Ipp)
- 120A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 6kW@8/20us
- Voltage - Breakdown
- 27V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Applications
- Cell Phone Handsets and Accessories
- Personal Digital Assistants (PDA's)
- Notebooks, Desktops, and Servers
- Portable Instrumentation
- Serial and Parallel Ports
Key features
- Ultra small package: 2.0x2.0x0.5mm
- Ultra low capacitance: 800pF Max
- Low operating voltage: 24V
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 80A (5/50ns)
- IEC61000-4-5 (Lightning) 120A (8/20μs)
- RoHS Compliant
