TECH PUBLICDatasheet (PDF)

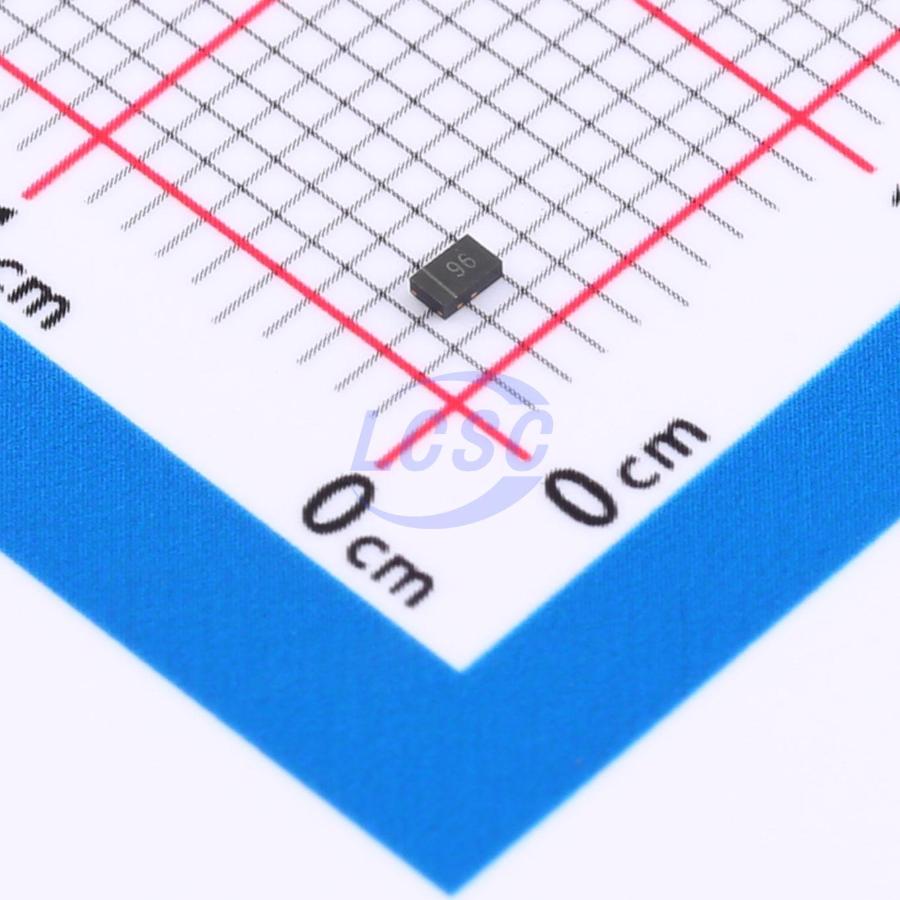

TPUCLAMP0871P
25VC Clamp 90A@8/20us Ipp DFN1610-2
DFN1610-2RoHSActive
8VWM 25VC DFN1610-2
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPUCLAMP0871P
- Store part #
- C2901329
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
835 in stock
#C2901329
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.66 | ₹108.30 |
| 50+ | ₹17.64 | ₹882.00 |
| 150+ | ₹15.62 | ₹2,343.00 |
| 500+ | ₹14.12 | ₹7,060.00 |
| 3,000+ | ₹11.01 | ₹33,030.00 |
| 6,000+ | ₹10.40 | ₹62,400.00 |
5 × ₹21.66
₹108.30
excl. GST
₹127.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPUCLAMP0871P
₹108.30 for 5 + GST
Specifications
- Clamping Voltage
- 25V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 90A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.8kW@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9.5V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Power Management
- Industrial Application
- Power Supply Protection
- Many other portable devices
Key features
- 1800W peak pulse power (8/20μs)
- Low leakage: nA level
- Low operating voltage: 12V
- Ultra low clamping voltage
- One power line protects
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 5 (Lightning) 76A (8/20μs)
- RoHS Compliant
