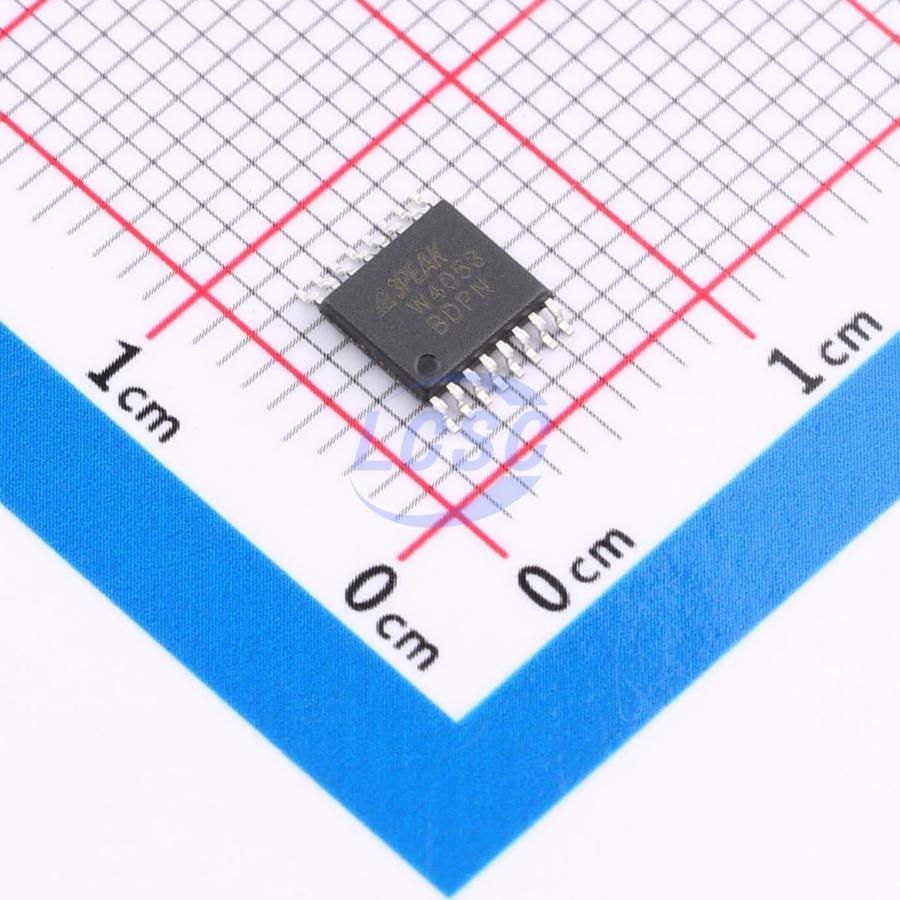

TPW4053-TR

TPW4053 is a triple single-pole double-throw analog switch designed for analog or digital multiplexer/demultiplexer applications. The device features three digital select inputs for controlling three independent switches. A logic-high on the digital enable input turns off all switches. Designed with an enhanced process, the device offers low power consumption and high switching speed. It operates as either a multiplexer or demultiplexer, with an input range that extends to the supply voltage. All channels employ break-before-make switching action to prevent momentary short circuits during channel switching. This is a 12V, triple SPDT analog switch.

Applications

• Industrial control systems
• Battery-powered systems
• Audio signal routing
• Instrumentation

Key features

• Analog switch voltages: 3.3 V, 5 V, 10 V, ±5 V
• Low on-resistance: typical 50Ω (Vs = ±4.5V or 9V); typical 60Ω (V_S = 4.5V); typical 300Ω (V_s = 3 V)
• Bandwidth: 200 MHz
• Fast switching time: t_ON = 60 ns, t_OFF = 50 ns
• Break-before-make switching
• Operating temperature range: -40℃ to 125℃
