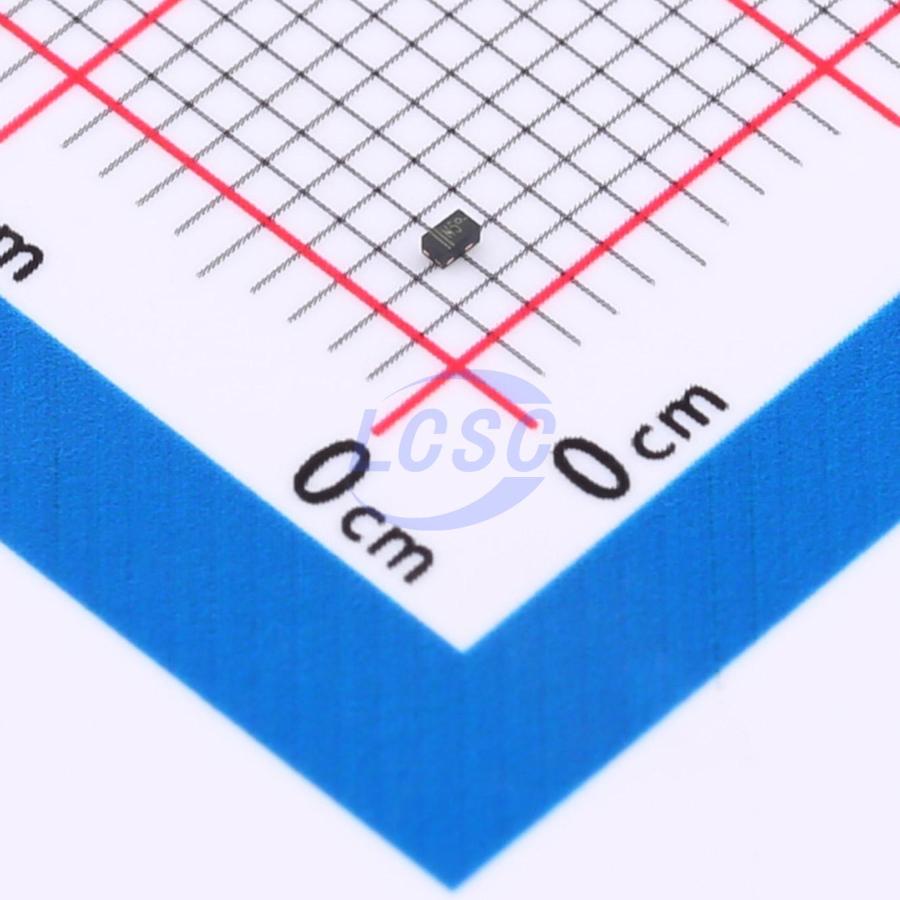

TPWNM2072-3/TR
25V 0.9A 0.35W Surface Mount DFN1006-3L
DFN1006-3LRoHSActive
MOSFET 25V 0.9A DFN1006-3L
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPWNM2072-3/TR
- Store part #
- C28642312
- Package / case
- DFN1006-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C28642312
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.52 | ₹90.40 |
| 200+ | ₹3.52 | ₹704.00 |
| 600+ | ₹2.98 | ₹1,788.00 |
| 2,000+ | ₹2.63 | ₹5,260.00 |
| 10,000+ | ₹2.35 | ₹23,500.00 |
| 20,000+ | ₹2.20 | ₹44,000.00 |
20 × ₹4.52
₹90.40
excl. GST
₹106.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
TPWNM2072-3/TR
₹90.40 for 20 + GST
Specifications
- Drain to Source Voltage
- 25V
- Output Capacitance(Coss)
- 9pF
- Current - Continuous Drain(Id)
- 900mA
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 350mW
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 500mΩ@2.5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1.1V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.005 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = 20V
- RDS(ON)=300mΩ (typ.) @ VGS = 2.5V
- RDS(ON)=250mΩ (typ.) @ VGS = 4.5V
- ESD Protected up to 2KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WNM2046#C28642318TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 8,100 | ₹3.89 · 8,100 in stock | View |
 | CJBB3134K-TP#C28646330TECH PUBLIC · DFN-3L(1x0.6) | TECH PUBLIC | DFN-3L(1x0.6) | 9,460 | ₹4.31 · 9,460 in stock | View |
 | PMZB290UNE#C28646377TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 3,540 | ₹4.33 · 3,540 in stock | View |
 | PNM3FD201E0#C28646378TECH PUBLIC · DFN-3L(1x0.6) | TECH PUBLIC | DFN-3L(1x0.6) | 180 | ₹2.18 · 180 in stock | View |
 | DMN2500UFB4-TP#C55042586TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 500 | ₹4.55 · 500 in stock | View |
