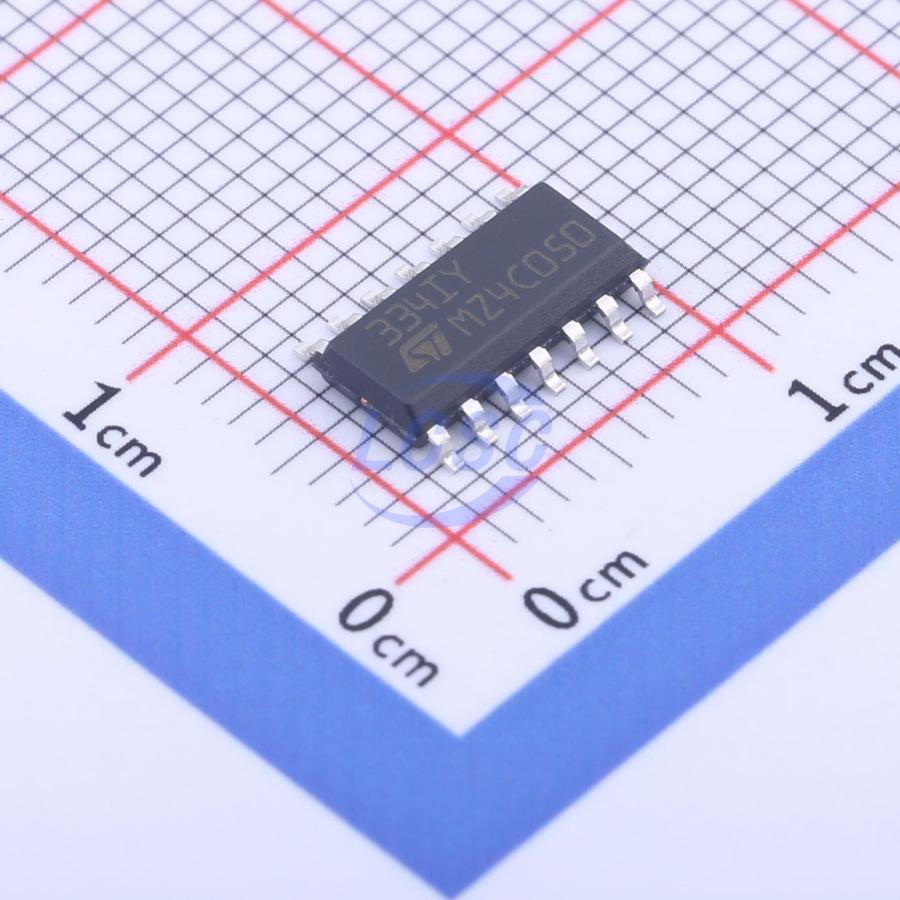

TS334IYDT
Four channels 20uA 5mV Rail-to-rail input SO-14 Comparators RoHS
Micropower low-voltage, rail-to-rail comparators
- Manufacturer
- ST
- Manufacturer part #
- TS334IYDT
- Store part #
- C2688723
- Package / case
- SO-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,492 in stock
#C2688723
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹370.15 | ₹370.15 |
| 10+ | ₹311.32 | ₹3,113.20 |
| 30+ | ₹274.40 | ₹8,232.00 |
| 100+ | ₹236.63 | ₹23,663.00 |
| 500+ | ₹219.70 | ₹1,09,850.00 |
| 1,000+ | ₹212.32 | ₹2,12,320.00 |
1 × ₹370.15
₹370.15
excl. GST
₹436.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS334IYDT
₹370.15 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 40nA
- Input Offset Voltage Drift(Vos TC)
- 4.5uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 210ns
- Common Mode Rejection Ratio(CMRR)
- 79dB
- Quiescent Current(Iq)
- 20uA
- Vos - Input Offset Voltage
- 5mV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 1.6V~5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The TS331, TS332 and TS334 are single, dual and quad micropower and low-voltage comparators. They can operate with a supply voltage ranging from 1.6 V to 5 V with a typical current consumption as low as 20 μA. In addition, rail-to-rail inputs make them a perfect choice for low-voltage applications. Their availability in tiny packages is a real advantage for overcoming space constraints. The TS33x are specified for temperatures between -40 °C to +125 °C, making them ideal for a wide range of applications.
Applications
- Mobile phones
- Notebooks and PDAs
- Battery-supplied electronics
- General-purpose portable devices
- General-purpose low voltage applications
Key features
- Supply operation from 1.6 V to 5 V
- Low current consumption: 20 μA
- Rail-to-rail inputs
- Wide temperature range: -40 °C to +125 °C
- Low output saturation voltage
- Low propagation delay: 210 ns
- Open-drain output
- ESD tolerance: 2 kV HBM/200 V MM
- SMD packages
- Automotive qualified
