STDatasheet (PDF)

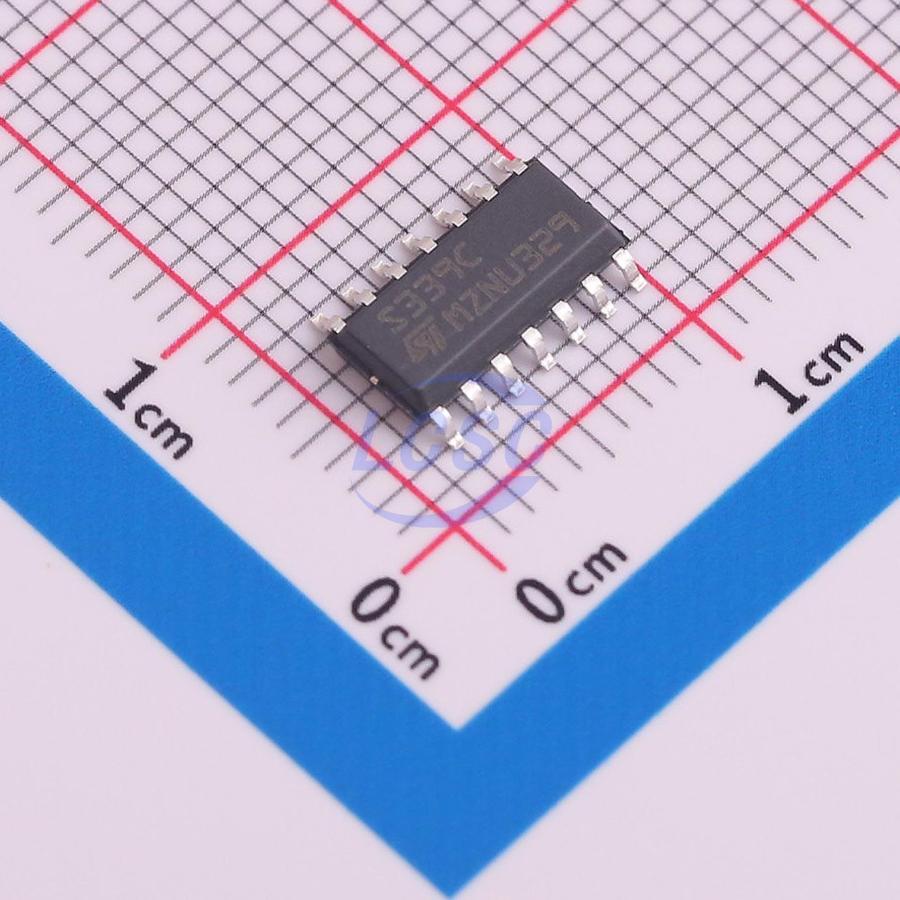

TS339CDT
Four channels 9uA 6.5mV Rail-to-rail input SO-14 Comparators RoHS
SO-14ROHS3 CompliantActive
Micropower quad CMOS voltage comparator
- Manufacturer
- ST
- Manufacturer part #
- TS339CDT
- Store part #
- C5268360
- Package / case
- SO-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,416 in stock
#C5268360
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.64 | ₹78.64 |
| 10+ | ₹62.43 | ₹624.30 |
| 30+ | ₹55.53 | ₹1,665.90 |
| 100+ | ₹46.89 | ₹4,689.00 |
| 500+ | ₹39.32 | ₹19,660.00 |
| 1,000+ | ₹36.95 | ₹36,950.00 |
1 × ₹78.64
₹78.64
excl. GST
₹92.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS339CDT
₹78.64 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 1pA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Features
- ESD protection
- Dual Supply
- 1.35V~8V;-8V~-1.35V
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Propagation Delay(tpd)
- 1.5us
- Quiescent Current(Iq)
- 9uA
- Vos - Input Offset Voltage
- 6.5mV
- Maximum Power Supply Range (Vdd-Vss)
- 18V
- Rail to Rail
- Rail-to-rail input
- Response Time (tr)
- 1.5us
- Single Supply
- 2.7V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.268 g
Overview
The TS339 device is a micro-power, CMOS, quad voltage comparator with extremely low consumption of 9 μA typ./comparator (20 times less than the bipolar LM339). Similar performances are offered by the quad micropower comparator TS3704 with a push-pull CMOS output. Thus response times remain similar to the LM339 device.
Key features
- Extremely low supply current: 9 μA typ./comparator
- Wide single supply range 2.7 V to 16 V or dual supplies (±1.35 V to ±8 V)
- Extremely low input bias current: 1 pA typ.
- Extremely low input offset current: 1 pA typ.
- Input common-mode voltage range includes GND
- High input impedance: 10^12 Ω typ.
- Fast response time: 1.5 μs typ. for 5 mV overdrive
- Pin-to-pin and functionally compatible with bipolar LM339 device
