STDatasheet (PDF)

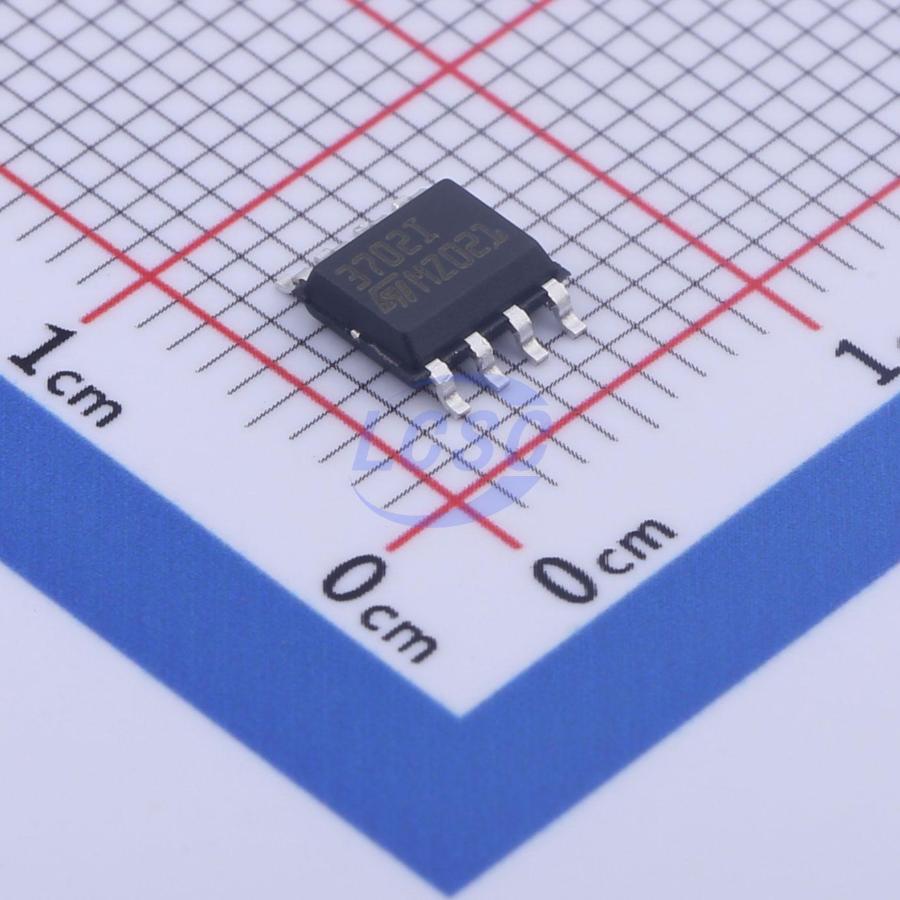

TS3702IDT
2 9uA 5mV SO-8 Comparators RoHS
SO-8ROHS3 CompliantActive
Micropower dual CMOS voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- TS3702IDT
- Store part #
- C2802551
- Package / case
- SO-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,299 in stock
#C2802551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.68 | ₹63.68 |
| 10+ | ₹49.98 | ₹499.80 |
| 30+ | ₹44.12 | ₹1,323.60 |
| 100+ | ₹36.73 | ₹3,673.00 |
| 500+ | ₹33.47 | ₹16,735.00 |
| 1,000+ | ₹31.51 | ₹31,510.00 |
1 × ₹63.68
₹63.68
excl. GST
₹75.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS3702IDT
₹63.68 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.35V~8V;-8V~-1.35V
- Ib - Input Bias Current
- 1pA
- Output Type
- Push-pull
- Common Mode Rejection Ratio(CMRR)
- 82dB
- Quiescent Current(Iq)
- 9uA
- Vos - Input Offset Voltage
- 5mV
- Single Supply
- 2.7V~16V
- Response Time (tr)
- 2us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.213 g
Overview
The TS3702 is a micropower CMOS dual voltage comparator with extremely low consumption of 9μA typ / comparator (20 times less than bipolar LM393). The push-pull CMOS output stage allows power and space saving by eliminating the external pull-up resistor required by usual opencollector output comparators. Thus response times remain similar to the LM393.
Key features
- Push-pull CMOS output (no external pull-up resistor required)
- Extremely low supply current: 9μA typ / comparator
- Wide single supply range: 2.7V to 16V or dual supplies (±1.35V to ±8V)
- Extremely low input bias current: 1pA typ
- Extremely low input offset currents: 1pA typ
- Input common-mode voltage range includes GND
- High input impedance: 10^12Ω typ
- Fast response time: 2μs typ for 5mV overdrive
- Pin-to-pin and functionally compatible with bipolar LM393
