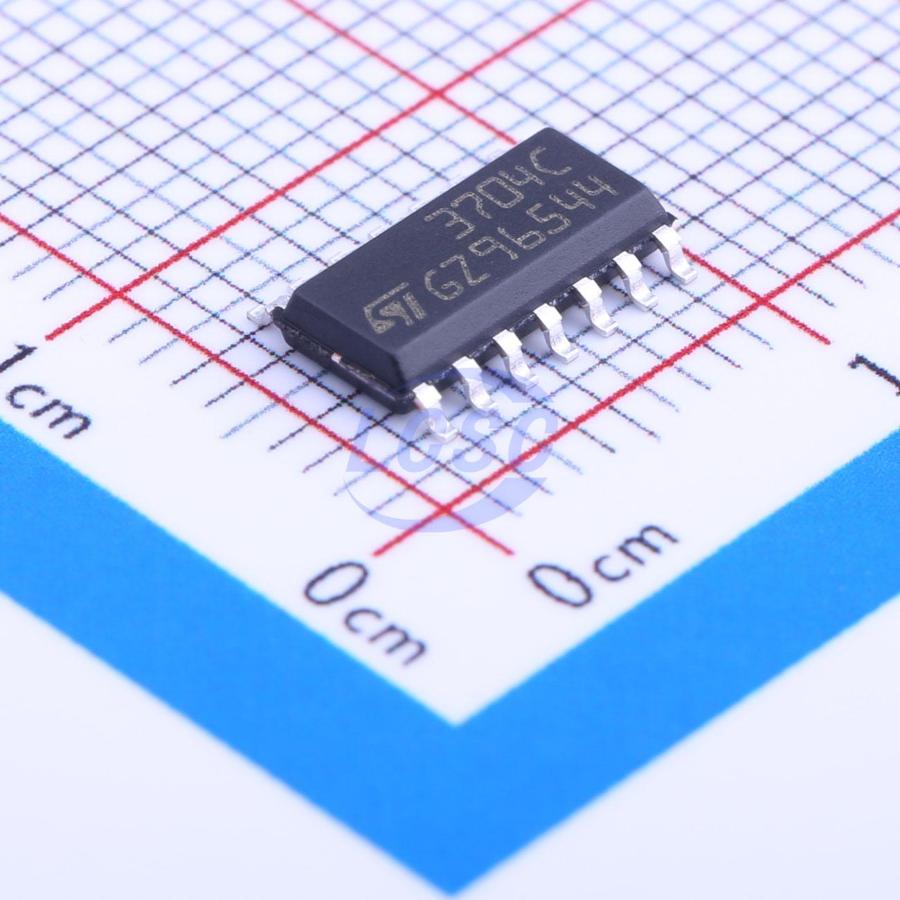

TS3704CDT
Four channels 9uA 1.2mV SOIC-14 Comparators RoHS
SOIC-14ROHS3 CompliantActive
Micropower quad CMOS voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- TS3704CDT
- Store part #
- C75832
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,266 in stock
#C75832
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.02 | ₹83.02 |
| 10+ | ₹67.59 | ₹675.90 |
| 30+ | ₹59.76 | ₹1,792.80 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹47.59 | ₹23,795.00 |
| 1,000+ | ₹45.21 | ₹45,210.00 |
1 × ₹83.02
₹83.02
excl. GST
₹97.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS3704CDT
₹83.02 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 1pA
- Output Mode
- TTL
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1.35V~8V;-8V~-1.35V
- Ib - Input Bias Current
- 1pA
- Output Type
- Push-pull
- Propagation Delay(tpd)
- 1.2us
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Quiescent Current(Iq)
- 9uA
- Vos - Input Offset Voltage
- 1.2mV
- Maximum Power Supply Range (Vdd-Vss)
- 18V
- Single Supply
- 2.7V~16V
- Response Time (tr)
- 2us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
The TS3704 is a micropower CMOS quad voltage comparator with extremely low consumption of 9μA typ / comparator (20 times less than bipolar LM339). The push-pull CMOS output stage allows power and space saving by eliminating the external pull-up resistor required by usual opencollector output comparators. Thus response times remain similar to the LM339.
Key features
- Push-pull CMOS output (no external pull-up resistor required)
- Extremely low supply current: 9μA typ per comparator
- Wide single supply range 2.7V to 16V or dual supplies (±1.35V to ±8V)
- Extremely low input bias current: 1pA typ
- Extremely low input offset current: 1pA typ
- Input common-mode voltage range includes GND
- High input impedance: 10^12Ω typ
- Last response time: 2μs typ. for 5mV overdrive
- Pin-to-pin and functionally compatible with bipolar LM339
