STDatasheet (PDF)

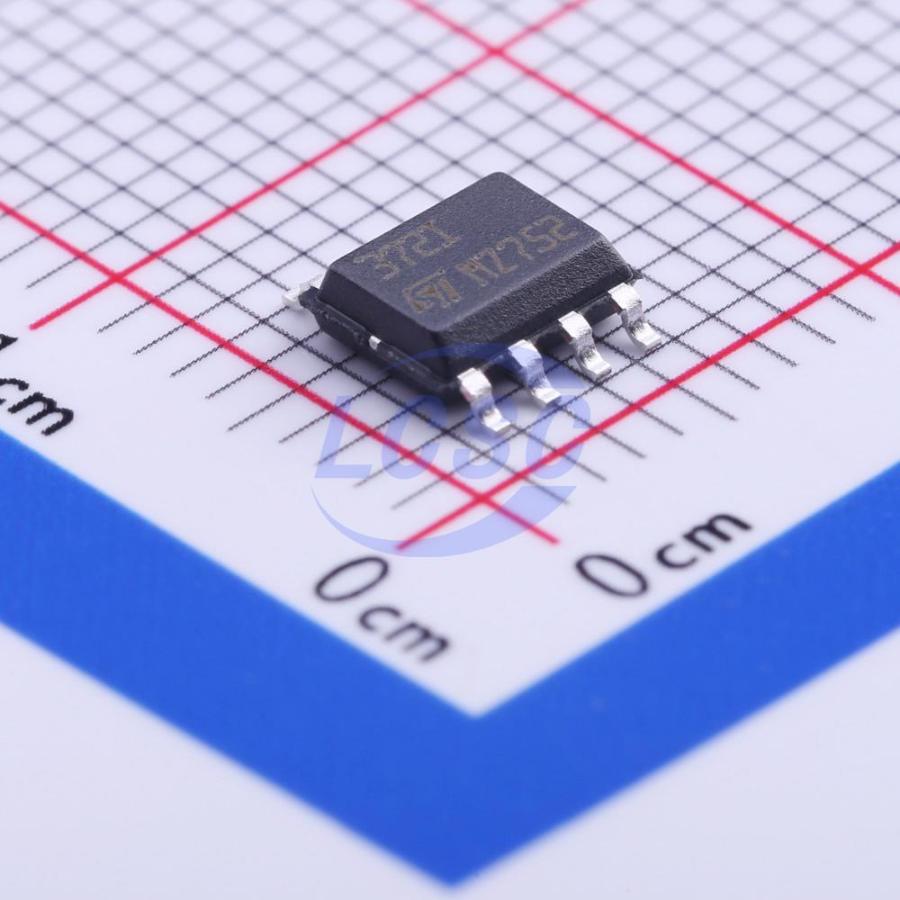

TS372IDT
2 150uA 2mV SO-8 Comparators RoHS
SO-8ROHS3 CompliantActive
Low power dual CMoS voltage comparator
- Manufacturer
- ST
- Manufacturer part #
- TS372IDT
- Store part #
- C71895
- Package / case
- SO-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,392 in stock
#C71895
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.33 | ₹69.33 |
| 10+ | ₹63.03 | ₹630.30 |
| 30+ | ₹60.20 | ₹1,806.00 |
| 100+ | ₹56.72 | ₹5,672.00 |
| 500+ | ₹55.20 | ₹27,600.00 |
| 1,000+ | ₹54.34 | ₹54,340.00 |
1 × ₹69.33
₹69.33
excl. GST
₹81.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS372IDT
₹69.33 for 1 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 1pA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.5V~8V;-8V~-1.5V
- Ib - Input Bias Current
- 1pA
- Propagation Delay(tpd)
- 200ns
- Quiescent Current(Iq)
- 150uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 16V
- Response Time (tr)
- 200ns
- Single Supply
- 3V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.235 g
Overview
These devices consist of two independent precision voltage comparators, designed to operate with single or dual supplies. These differential comparators use the silicon lin MOS process giving them an excellent consumption-speed ratio. These devices are ideally suited for low consumption applications.
Applications
- Battery powered electronics
- General-purpose portable device
- General-purpose low voltage application
Key features
- Wide single supply range or dual supplies 3 V to 16 V or ±1.5 V to ±8 V
- Very low supply current: 0.1 mA/comparator independent of supply voltage
- Extremely low input bias current: 1 pA typ
- Extremely low input offset currents: 1 pA typ
- Low input offset voltage
- Input common-mode voltage range includes GND
- Low output saturation voltage 150 mV typical
- Output compatible with TTL, MOS and CMOS
- High input impedance: 10^12 Ω typical
- Fast response time: 200 ns typ for TTL level input step
